Molex / Waldom 90120-0764

mpn901200764
brandname: MOLEX
manufacturername: MOLEX

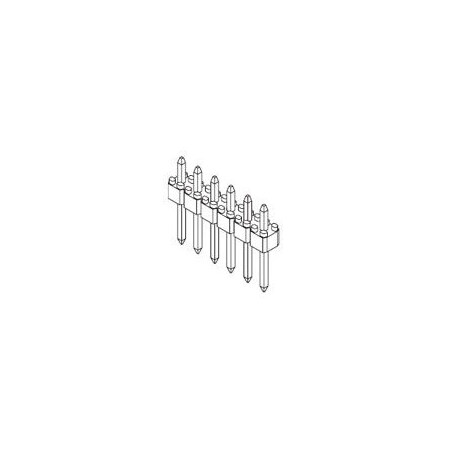

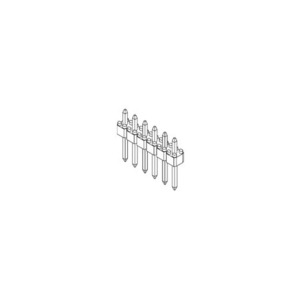

90120-0764, Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (100 Items)

90120-0764, Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (100 Items)

zoom

Brand: Molex / Waldom
PartNumber: 90120-0764
Model: 90120-0764
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901200764
Applications	Automotive, General Pur.
Base Product Number	090120
Category	Connectors, Interconnec.
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	-
Description	CONN HEADER VERT 4POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM50033-04-ND
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0901200764
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	0.478" (12.15mm)
Package	Bulk
Package Quantity	1
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	C-Grid III 90120, C-Gri.
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Type	Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Rutronik	COREC15006	0.3251	12000	10		Molex		0.3251 @ 12000
	Waldom	MOLEX 90120-0764	0.5	150	16653		MOLEX		0.5 @ 150
	jensentools.com	10198138	0.57	1	15153		Molex		0.57 @ 10
	Newark	25M5812	0.696	1	15153		MOLEX		0.696 @ 10
	us.rs-online.com	70372838	0.73	1	10		Molex Incorporated		0.73 @ 10
	Digi-Key	6190259	0.761	1	402		Molex		0.761 @ 10
	RS Delivers	360-6314P	0.9084	1	705		Molex		0.9084 @ 10
	TME	MX-90120-0764	1.255	10	150		MOLEX		1.255 @ 10
	AmazonTP	B07QWBBKDZ	70.56	1	10	1	Molex		70.56 @ 10
	Zoro	G4046792	139.5	150	10		Molex		139.5 @ 150
