Molex / Waldom 90131-0125

B00GQR55TC

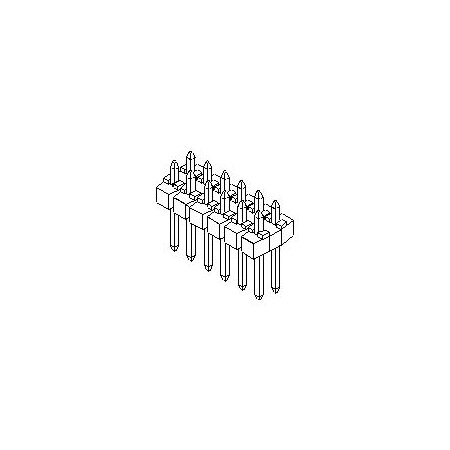

Molex / Waldom 90131-0125 Connector Headers and PCB Receptacles

Molex / Waldom 90131-0125 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number090131
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.266" (6.75mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER VERT 10POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM8123-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.098" (2.50mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Product Nu.0901310125
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length0.478" (12.15mm)
PackageBulk
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesC-Grid III 90131
ShroudingUnshrouded
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager Electronics09013101250.4351265Molex0.435 @ 100
Power and Signal Group90131-01250.47431800100Molex0.4743 @ 1800
Onlinecomponents.com90131-01250.51113379MOLEX / WALDOM0.51 @ 100
WaldomMOLEX 90131-01250.5990121MOLEX0.59 @ 100
thumbzoomDigi-Key7608370.714353600100Molex0.71435 @ 3600
thumbzoomNewark37AC13700.73613068MOLEX0.736 @ 100
thumbzoomjensentools.com101982630.791100Molex0.79 @ 100
RS Delivers670-3455P1.47361905Molex1.4736 @ 100
thumbzoomZoroG403079981.91100Molex81.9 @ 100
