Molex / Waldom 44472-1254

B00GQQNRF2

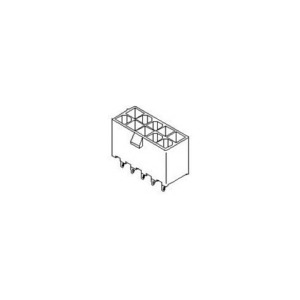

Molex / Waldom 44472-1254 Connector Power

Molex / Waldom 44472-1254 Connector Powerzoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number044472
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER VERT 12POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM18454-ND
Fastening TypeLocking Ramp
Features-
Ingress Protection-
Insulation ColorNatural
Insulation Height0.504" (12.80mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Product Nu.0444721254
Mated Stacking Heights-
Material Flammability R.UL94 V-2
MfrMolex
Mounting TypeThrough Hole
Number of Positions12
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageTray
Pitch - Mating0.165" (4.20mm)
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesMini-Fit HCS 44472
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 44472-12541.37720170MOLEX1.37 @ 720
Onlinecomponents.com44472-12541.81155Molex / Waldom1.81 @ 1
thumbzoomjensentools.com101898441.831170Molex1.83 @ 1
Avnet44472-12542.4153155Molex2.4153 @ 1
HotendaH13002512.51139Molex2.51 @ 1
thumbzoomDigi-Key3000873.5914Molex3.59 @ 1
thumbzoomRadwell44472-12544.018025MOLEX4.0 @ 180
