mpn:
brand:
manufacturer:
MPN:
Preferred Price:
3.2
Price:
3.2
Min Simple Price:
1.04
Absolute Min Price:
2.64
Min Price:
2.64
Dimensions:
[1.0, 1.0, 1.0]
qty:
47
simpleSku:
jE2NzQ:::70541-0040
sku:
jE2NzQ::H0:70541-0040@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
molex / waldom
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 070541 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Black |
| Connector Type | Header |
| Contact Finish - Mating, Plating Material | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post | 74.8?in (1.90?m) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Current Rating (Amps) | 3A |

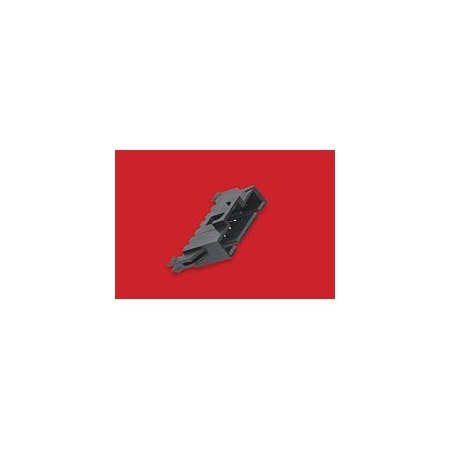

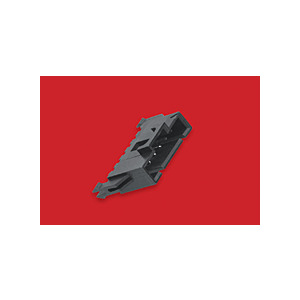

| Description | CONN HEADER VERT 6POS 2.54MM |
| Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Digi-Key Part Number | WM14050-ND |
| Family Name | SL |
| Fastening Type | Latch Holder |
| Features | Board Lock |
| Ingress Protection, Mated Stacking Heights, Row Spacing - Mating | - |
| Insulation Height | 0.465" (11.80mm) |
| Insulation Material | Polyester, Glass Filled |
| Manufacturer Product Number | 0705410040 |
| Manufacturer Standard Lead Time | 35 Weeks |
| Manufacturer, Mfr | Molex |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits, Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows, Package Quantity | 1 |
| Operating Temperature | -40?C ~ 105?C |
| Overall Contact Length | 0.470" (11.94mm) |
| Package | Bulk |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Series | SL 70541, 70541 Series |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 70541-0040 | 1.04 | 1.04 | 1 | 8399 | MOLEX / WALDOM | 1.04 @ Qty: 1+ | |||
| Waldom | MOLEX 70541-0040 | 1.05 | 23.73 | 55 | 9441 | MOLEX | 1.05 @ Qty: 55+ | |||
 | jensentools.com | 10195546 | 1.33 | 1.33 | 1 | 8589 | Molex | 1.33 @ Qty: 1+ | ||
| Hotenda | H1370854 | 1.54 | 1.54 | 1 | 64 | Molex | 1.54 @ Qty: 1+ | |||
| us.rs-online.com | 71463448 | 1.62 | 1.62 | 1 | 61 | Molex Incorporated | 1.62 @ Qty: 1+ | |||
| Newark | 81AK8843 | 2.09 | 1847.142 | 2208 | 47 | MOLEX | 2.09 @ Qty: 1000+ | |||
 | Digi-Key | 3468732 | 2.54 | 2.54 | 1 | 1736 | Molex | 2.54 @ Qty: 1+ | ||
 | Zoro | G4045578 | 107.25 | 2423.85 | 55 | 47 | Molex | 107.25 @ Qty: 55+ |
