mpn:
brand:
manufacturer:
MPN:
Preferred Price:
148.59
Price:
148.59
Min Simple Price:
16.24
Absolute Min Price:
115.3
Min Price:
115.3
qty:
1
simpleSku:
jE2NzQ:::76160-5026
sku:
jE2NzQ::79:76160-5026@x5
condition:
11
seller:
Onlinecomponents.com
amzMan:
molex
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | 076160 |
| Category | Connectors, Interconnects |
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage, Current Rating (Amps) | - |
| Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Finish, Plating Material | Gold |
| Contact Layout, Typical | 64 Differential Pairs |
| Current Rating | 0.75 A |

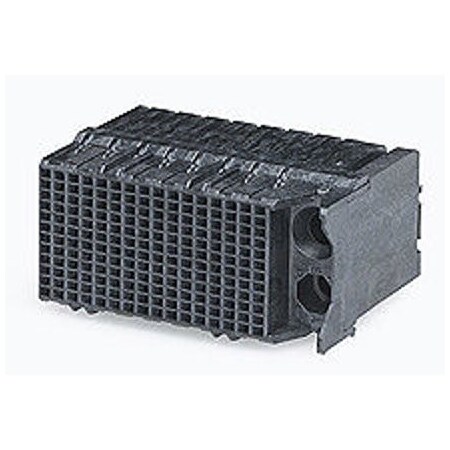

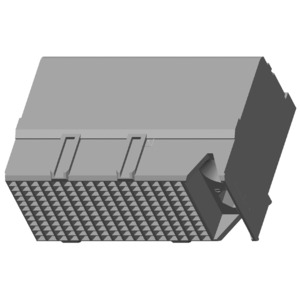

| Description | CONN RCPT IMPACT 192POS EDGE MNT |
| Detailed Description | 192 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact, Guide Right |
| Digi-Key Part Number | 0761605026-ND |
| Family Name | Impact |
| Features | Board Guide |
| Impedance | 100 Ohm |
| Manufacturer Product Number | 0761605026 |
| Manufacturer Standard Lead Time | 15 Weeks |
| Manufacturer, Mfr | Molex |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Circuits, Number of Contacts, Number of Positions | 192 |
| Number of Columns | 16 |
| Number of Pairs | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Operating Temperature | -55?C ~ 85?C, -55 - 85 C |
| Orientation | Right Angle |
| Package | Tray |
| Package Quantity | 1 |
| Pitch | 0.053" (1.35mm) |
| Primary Type | Impact Backplane Connector And Cable Assembly System |
| Product Status | Active |
| Series | Impact 76160, 76160 Series |
| Temperature Range | -55 to 85 C |
| Termination | Through Hole, Press-Fit |
| Type | PCB Receptacle |
| Voltage Rating | 30V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 76160-5026 | 16.24 | 256.592 | 32 | 5 | Molex / Waldom | 16.24 @ Qty: 32+ | |||
| Newark | 57R0421 | 22.37 | 1194.558 | 126 | 5 | MOLEX | 22.37 @ Qty: 100+ | |||
 | jensentools.com | 10196754 | 23.99 | 81.566 | 1 | 5 | Molex | 23.99 @ Qty: 5+ | ||
 | Zoro | G905926433 | 28.19 | 118.398 | 3 | 5 | Molex | 28.19 @ Qty: 5+ | ||
 | Digi-Key | 2789462 | 29.64 | 100.776 | 1 | 200 | Molex | 29.64 @ Qty: 5+ | ||
| us.rs-online.com | 71466067 | 33.34 | 113.356 | 1 | 5 | Molex Incorporated | 33.34 @ Qty: 5+ |
