Molex 53375-0510

B00GQRAXGC

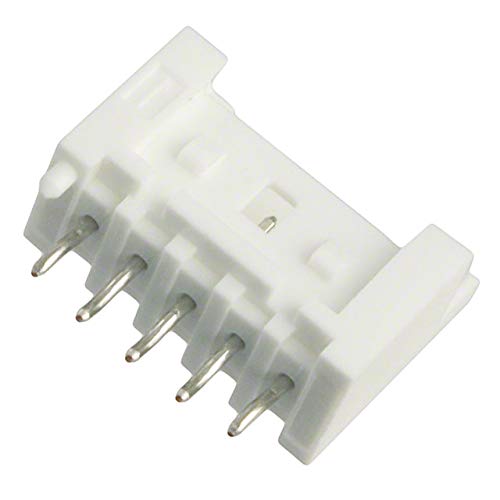

Molex Connector, Header, 5Pos, 1Row, 2.5Mm - 53375-0510

Molex Connector, Header, 5Pos, 1Row, 2.5Mm - 53375-0510zoom

Attributes

Key Value
Alternate Mfr Part Numb.53375-0510
ApplicationFor PCB
Applications General Purpose, Indus.
Categories Connectors, Interconne.
ColorNatural
Connector ShapeSquare
Connector Type Header
Contact FinishTin Plated
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Finish Thicknes. 39?in (1.00?m) , 39.4?.
Contact Finish Thicknes. -
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.134" (3.40mm)
Contact Material Phosphor Bronze
Contact Shape Circular
Contact Type Male Pin
Current Rating3 A, -
Current Rating (Amps)Varies by Wire Gauge
Expanded Description 5 Positions Header Con.
Family NameMini-Lock
Fastening Type Locking Ramp
Features Board Guide
Flammability RatingUL 94V-0
Hole Center to Center2.5 mm
Ingress Protection -
Insulation Color White
Insulation Height 0.453" (11.50mm)
Insulation Material Polybutylene Terephtha.
IP RatingNone
Lead Free Status / RoHS. Lead free / RoHS Compl.
Manufacturer Molex, LLC
Mated Stacking Heights -
MaterialPolyester
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrMolex
Mounting TypeThrough Hole
Number of Circuits5
Number of Contacts5
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
OrientationVertical
Overall Contact Length -
PackageBag
Part StatusActive
Pitch2.50 mm (0.098")
Pitch - Mating0.098" (2.50mm)
Plating Material Tin
Primary TypeBoard Mount
Row Spacing - Mating -
Series53375 Series
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole - Kinked P.
TerminationKinked Pin, Solder
TypeVertical Header
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

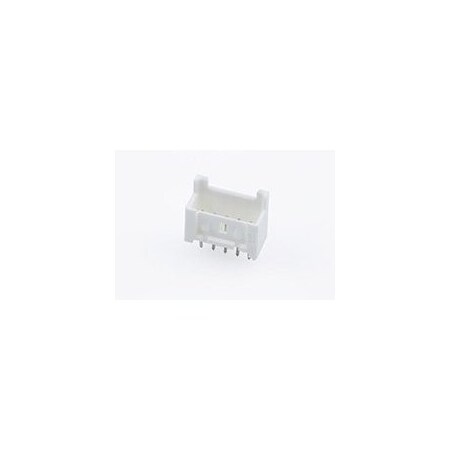

WaldomMOLEX 53375-05100.22925013237MOLEX0.229 @ 250
Onlinecomponents.com53375-05100.248144002Molex0.248 @ 1
thumbzoomjensentools.com101938510.33117772Molex0.33 @ 1
thumbzoomNewark57H53540.397110109MOLEX0.397 @ 1
thumbzoomDigi-KeyWM4270-ND0.531188Molex0.53 @ 1
RS Delivers720-6404P0.87481160Molex0.8748 @ 1
us.rs-online.com703746841.131010Molex Incorporated1.13 @ 10
thumbzoomMisumi USA53375-05101.271188Molex1.27 @ 1
thumbzoomRadwell53375-05101.41188MOLEX1.4 @ 1
thumbzoomZoroG305911695104.01188Molex104.0 @ 1
