Molex 90131-0133

B00GQRDGZC

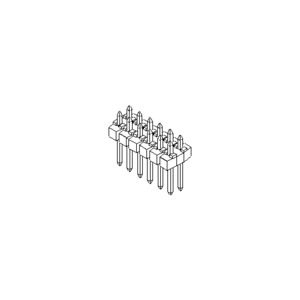

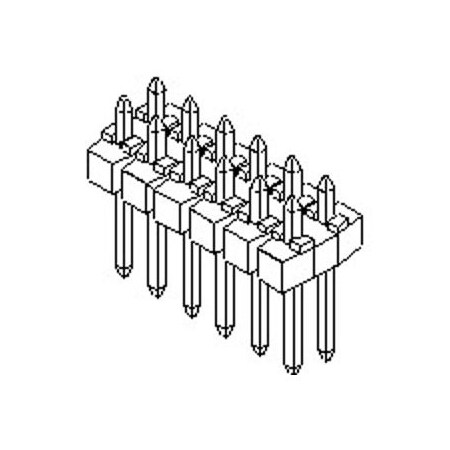

Molex Connector, Header, 26Pos, 2Row, 2.54Mm - 90131-0133

Molex Connector, Header, 26Pos, 2Row, 2.54Mm - 90131-0133zoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number090131
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Finish Thicknes.-
Contact Length - Mating0.266" (6.75mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER VERT 26POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM8131-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.098" (2.50mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMOLEX
Manufacturer Product Nu.0901310133
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMOLEX
Mounting TypeThrough Hole
Number of Positions26
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length0.478" (12.15mm)
PackageBulk
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesC-Grid III 90131
ShroudingUnshrouded
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 90131-01331.02880712MOLEX1.0 @ 2880
Onlinecomponents.com90131-01331.1811170MOLEX / WALDOM1.18 @ 1
thumbzoomDigi-Key7608451.29056288077Molex1.29056 @ 2880
thumbzoomjensentools.com101982691.681362Molex1.68 @ 1
thumbzoomNewark25M59022.031212MOLEX2.03 @ 1
TMEMX-90131-01332.35177MOLEX2.35 @ 1
HotendaH13001702.38177Molex2.38 @ 1
RS Delivers670-3471P3.1056120Molex3.1056 @ 1
thumbzoomZoroG70589126987.754577Molex87.75 @ 45
