mpn:
brand:
manufacturer:
MPN:
Description:

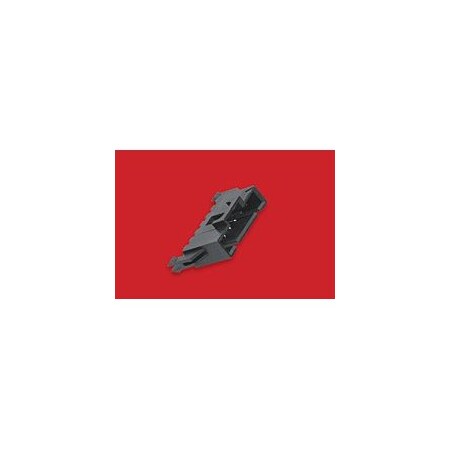

SL Vrt Latch Hdr Split Pg Tin 10Ckt
Preferred Price:
3.08
Price:
3.08
Min Simple Price:
0.9401
Absolute Min Price:
2.5
Min Price:
2.5
Dimensions:
[1.0, 1.0, 1.0]
qty:
45
simpleSku:
jE2NzQ:::70541-0009
sku:
jE2NzQ::TQ:70541-0009@y0
condition:
11
seller:
Sager Electronics
amzMan:
molex / waldom
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 070541 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Black |
| Connector Type | Header |
| Contact Finish - Mating, Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 150.0?in (3.81?m) |
| Contact Finish Thickness - Post, Ingress Protection, Mated Stacking Heights, Row Spacing - Mating | - |
| Contact Finish, Terminal Finish | Tin Plated |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Material | Phosphor Bronze |
| Contact Plating Thickness | 3.81 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Current Rating (Amps) | 3A |
| Description | CONN HEADER VERT 10POS 2.54MM |
| Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Digi-Key Part Number | WM21000-ND |
| Fastening Type | Latch Holder |
| Features | Surface Mount Compatible, Board Lock |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 2.54 mm |
| Insulation Height | 0.465" (11.80mm) |
| Insulation Material | Polyester, Glass Filled |
| Manufacturer Product Number | 0705410009 |
| Manufacturer Standard Lead Time | 35 Weeks |
| Manufacturer, Mfr | Molex |
| Material | High Temperature Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 105?C |
| Max. Voltage, Voltage Rating | 250V |
| Mounting Type, Terminal Type | Through Hole |
| Number of Contacts, Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows, Package Quantity | 1 |
| Operating Temperature | -40?C ~ 105?C |
| Overall Contact Length | 0.470" (11.94mm) |
| Package | Bulk |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Series | SL 70541 |
| Shrouding | Shrouded - 4 Wall |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire |
| Termination | Solder |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Sager Electronics | 0705410009 | 0.9401 | 289.36278 | 768 | 468 | Molex | 0.9401 @ Qty: 768+ | |||
| Avnet | 70541-0009 | 1.03841 | 1.03841 | 1 | 96 | Molex | 1.03841 @ Qty: 1+ | |||
| Waldom | MOLEX 70541-0009 | 1.04 | 40.56 | 96 | 2387 | MOLEX | 1.04 @ Qty: 96+ | |||
 | jensentools.com | 10195543 | 1.39 | 1.39 | 1 | 2291 | Molex | 1.39 @ Qty: 1+ | ||
| Newark | 93M3287 | 2.2 | 43.56 | 48 | 45 | MOLEX | 2.2 @ Qty: 25+ | |||
 | Digi-Key | 3468727 | 2.67 | 2.67 | 1 | 376 | Molex | 2.67 @ Qty: 1+ | ||
 | Zoro | G2755520 | 177.6 | 6926.4 | 96 | 45 | Molex | 177.6 @ Qty: 96+ |
