mpn:
brand:
manufacturer:
MPN:
Description:

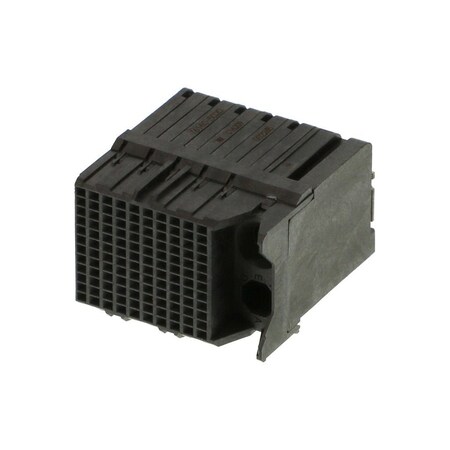

Impact DC 4x10 GR Sn
Weight:
0.04
Weight:
0.04 LB
Preferred Price:
19.22
Price:
19.22
Min Simple Price:
10.22
Absolute Min Price:
15.03
Min Price:
15.03
qty:
21
simpleSku:
jE2NzQ:::76160-5020
sku:
jE2NzQ::MQ:76160-5020@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
molex / waldom
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | 076160 |
| Category | Connectors, Interconnects |
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage, Current Rating (Amps) | - |
| Contact Finish | Gold Plated |
| Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Finish, Plating Material | Gold |
| Contact Layout, Typical | 40 Differential Pairs |
| Contact Plating Thickness | 0.762 ?m |
| Current Rating | 0.75 A |
| Description | CONN RCPT IMPACT 120POS EDGE MNT |
| Detailed Description | 120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact, Guide Right |
| Digi-Key Part Number | WM14695-ND |
| Family Name | Impact |
| Features | Board Guide |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 1.9 mm |
| Impedance | 100 Ohm |
| Manufacturer Product Number | 0761605020 |
| Manufacturer Standard Lead Time | 14 Weeks |
| Manufacturer, Mfr | Molex |
| Material | High Temperature Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 85?C |
| Max. Voltage | 30V AC/DC |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Circuits, Number of Contacts, Number of Positions | 120 |
| Number of Columns | 10 |
| Number of Pairs | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Operating Temperature | -55?C ~ 85?C, -55 - 85 C |
| Orientation | Right Angle |
| Package | Tray |
| Package Quantity | 1 |
| Pitch | 0.053" (1.35mm) |
| Primary Type | Impact Backplane Connector And Cable Assembly System |
| Product Status | Active |
| Series | Impact 76160, 76160 Series |
| Standards | UL E29179 |
| Temperature Range | -55 to 85 C |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole - Compliant Pin |
| Termination | Through Hole, Press-Fit |
| Type | PCB Receptacle |
| Voltage Rating | 30V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 76160-5020 | 10.22 | 10.22 | 1 | 12 | MOLEX / WALDOM | 10.22 @ Qty: 1+ | |||
| Waldom | MOLEX 76160-5020 | 11.76 | 30.576 | 5 | 312 | MOLEX | 11.76 @ Qty: 5+ | |||
 | jensentools.com | 10196753 | 15.68 | 15.68 | 1 | 312 | Molex | 15.68 @ Qty: 1+ | ||
| Hotenda | H733249 | 16.48 | 16.48 | 1 | In Stock | Molex | 16.48 @ Qty: 1+ | |||
| Newark | 78AC2113 | 18.37 | 18.37 | 1 | 302 | MOLEX | 18.37 @ Qty: 1+ | |||
 | Digi-Key | 2789461 | 19.18 | 19.18 | 1 | 463 | Molex | 19.18 @ Qty: 1+ | ||
| us.rs-online.com | 71466061 | 21.15 | 21.15 | 1 | In Stock | Molex Incorporated | 21.15 @ Qty: 1+ | |||
 | Zoro | G305926460 | 84.95 | 84.95 | 1 | In Stock | Molex | 84.95 @ Qty: 1+ |
