- mpn83614-9012
- brandname: Molex Incorporated
- manufacturername: Molex Incorporated

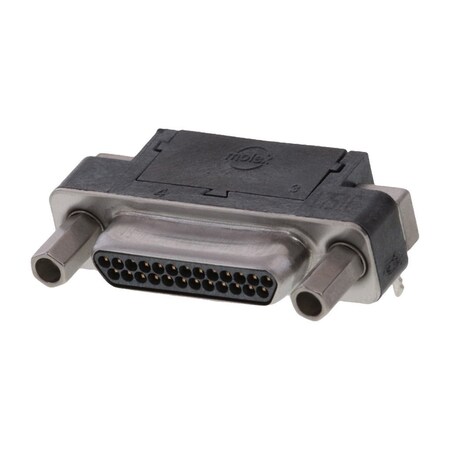

Micro D Sub Connector, Right Angle, 25 Contacts, Plug, 83614 Series, Through Hole, PCB Mount
- Brand: Molex
- PartNumber: 83614-9012
- Model: 83614-9012
- PackageQuantity: 1
- Manufacturer: MOLEX
- Label: MOLEX
Attributes
| Key | Value |
|---|
| Backset Spacing | 0.267" (6.78mm) |
| Base Product Number | 083614 |
| Category | Connectors, Interconnec. |
| Color | - |
| Connector Style | D-Type, Micro-D |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0?in (0.38?m) |
| Contact Form | - |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 1A |
| Description | CONN MICRO-D PLUG 25POS. |
| Detailed Description | 25 Position D-Type, Mic. |
| Dielectric Material | Liquid Crystal Polymer . |
| Digi-Key Part Number | WM2144-ND |
| Features | Board Lock, Shielded |
| Flange Feature | Mating Side, Female Scr. |
| Ingress Protection | - |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0836149012 |
| Manufacturer Standard L. | 13 Weeks |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Type | Panel Mount, Through Ho. |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature | -40?C ~ 125?C |
| Package | Tube |
| Product Status | Active |
| Series | Commercial Micro-D Seri. |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector L. | 0.050 Pitch x 0.050 Row. |
| Termination | Solder |
| Voltage Rating | - |
| Wire Gauge | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 71465767 | 1.4 | 1 | 10 | | Molex Incorporated | | 1.4 @ 1 |
| Power and Signal Group | 83614-9012 | 7.8759 | 102 | In Stock | | Molex | | 7.8759 @ 102 |
| Waldom | MOLEX 83614-9012 | 15.56 | 4 | 198 | | MOLEX | | 15.56 @ 4 |
 | jensentools.com | 10197324 | 17.12 | 1 | In Stock | | Molex | | 17.12 @ 1 |
| RS Delivers | 126-6377 | 23.364 | 1 | 15 | | Molex | | 23.364 @ 1 |
 | Newark | 37AC1346 | 26.04 | 1 | 76 | | MOLEX | | 26.04 @ 1 |
 | Digi-Key | 1867000 | 29.664 | 1 | 778 | | Molex | | 29.664 @ 1 |
 | TME | MX-83614-9012 | 32.33 | 1 | 2 | | MOLEX | | 32.33 @ 1 |
 | Zoro | G600415522 | 98.75 | 1 | In Stock | | Molex | | 98.75 @ 1 |
