mpn:
brand:
manufacturer:
MPN:
Description:

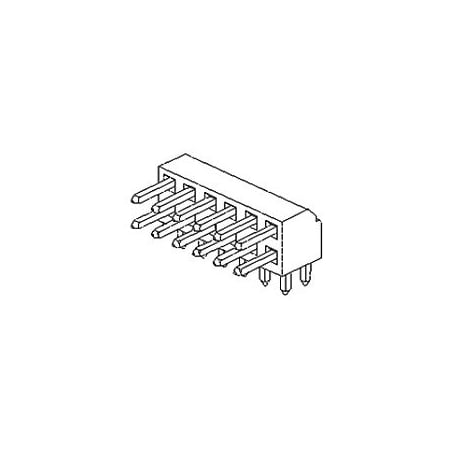

MGrid Hdr D.R. RA .38AuLF 50Ckt
Preferred Price:
64.5
Price:
64.5
Min Simple Price:
1.41
Absolute Min Price:
50.05
Min Price:
50.05
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
jE2NzQ:::87760-5016
sku:
jE2NzQ::C8:87760-5016@x25
condition:
11
seller:
Onlinecomponents.com
amzMan:
molex / waldom
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | Automotive, General Purpose, Telecommunications |
| Base Product Number | 87760 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Black |
| Connector Type | Header |
| Contact Finish | Gold Plated |
| Contact Finish - Mating, Plating Material | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post | 78.7?in (2.00?m) |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Contact Material | Phosphor Bronze |
| Contact Plating Thickness | 0.381 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2 A |
| Current Rating (Amps), Features, Ingress Protection, Mated Stacking Heights, Operating Temperature, Overall Contact Length, Voltage Rating | - |
| Description | CONN HEADER R/A 50POS 2MM |
| Detailed Description | Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm) |
| Digi-Key Part Number | WM18635-ND |
| Family Name | Milli-Grid |
| Fastening Type | Push-Pull |
| Features | Surface Mount Compatible |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 2 mm |
| Insulation Height | 0.169" (4.30mm) |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Manufacturer Product Number | 0877605016 |
| Manufacturer Standard Lead Time | 18 Weeks |
| Manufacturer, Mfr | Molex |
| Material | High Temperature Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 265?C |
| Max. Voltage | 125V |
| Mounting Type | Through Hole, Right Angle |
| Number of Circuits, Number of Contacts, Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Package | Tray |
| Pitch - Mating, Row Spacing - Mating | 0.079" (2.00mm) |
| Product Status | Active |
| Series | 87760 Series, Milli-Grid 87760 |
| Shrouding | Unshrouded |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Board or Cable |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 87760-5016 | 1.41 | 1.41 | 1 | 901 | MOLEX / WALDOM | 1.41 @ Qty: 1+ | |||
| Power and Signal Group | 0877605016 | 1.5481 | 1115.56086 | 1800 | 64 | Molex | 1.5481 @ Qty: 1800+ | |||
| Waldom | MOLEX 87760-5016 | 1.73 | 25.258 | 35 | 5050 | MOLEX | 1.73 @ Qty: 35+ | |||
 | NEP Electronics | 87760-5016 | 2.3971 | 34.99766 | 35 | 6585 | Molex | 2.3971 @ Qty: 35+ | ||
| us.rs-online.com | 71465068 | 2.66 | 2.66 | 1 | 64 | Molex Incorporated | 2.66 @ Qty: 1+ | |||
 | Digi-Key | 699187 | 4.12 | 4.12 | 1 | 108 | Molex | 4.12 @ Qty: 1+ | ||
| Newark | 94M1680 | 4.32 | 4.32 | 1 | 64 | MOLEX | 4.32 @ Qty: 1+ | |||
 | Zoro | G4028909 | 99.75 | 99.75 | 1 | 64 | Molex | 99.75 @ Qty: 1+ |
