Molex 87832-4020

B00GQQKEBW

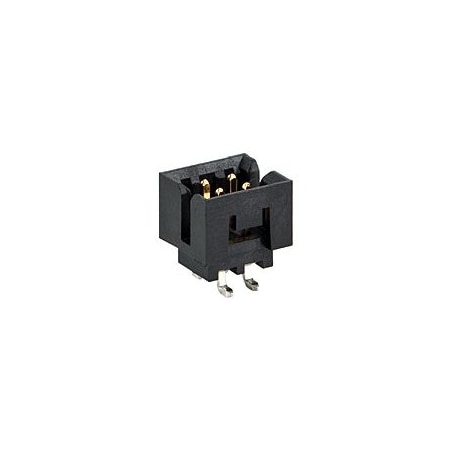

MOLEX - 87832-4020 - Pin Header, Signal, 2 mm, 2 Rows, 40 Contacts, Surface Mount Straight, Milli-Grid 87832 Series

MOLEX - 87832-4020 - Pin Header, Signal, 2 mm, 2 Rows, 40 Contacts, Surface Mount Straight, Milli-Grid 87832 Serieszoom

Attributes

Key Value
Alternate Mfr Part Numb.87832-4020
ApplicationsAutomotive, General Pur.
Base Product Number087832
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.141" (3.60mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD 40POS 2.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM18648-ND
Family NameMilli-Grid
Fastening TypeLatch Holder
FeaturesBoard Guide, Keying Slo.
Flammability RatingUL 94V-0
Hole Center to Center2 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.252" (6.40mm)
Insulation MaterialPolyamide (PA), Nylon, .
ManufacturerMolex
Manufacturer Product Nu.0878324020
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage125V
MfrMolex
Mounting TypeSurface Mount
Number of Circuits40
Number of Contacts40
Number of Positions40
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 105?C
OrientationVertical
Overall Contact Length-
PackageTube
Package Quantity1
Pitch2.00 mm (0.079")
Pitch - Mating0.079" (2.00mm)
Plating MaterialGold
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.079" (2.00mm)
Series87832 Series, Milli-Gri.
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder, Surface Mount
TypeVertical Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet08783240202.43712947Molex2.437 @ 12
Onlinecomponents.com87832-40202.610317Molex2.6 @ 10
RS Delivers670-11162.9472170Molex2.9472 @ 1
thumbzoomjensentools.com101978003.413Molex3.4 @ 1
thumbzoomNewark01AH17474.271986MOLEX4.27 @ 1
thumbzoomDigi-Key6991915.491967Molex5.49 @ 1
us.rs-online.com703733415.55In StockMolex Incorporated5.5 @ 5
thumbzoomZoroG403058997.2525In StockMolex97.25 @ 25
