mpn:
brand:
manufacturer:
MPN:
Description:

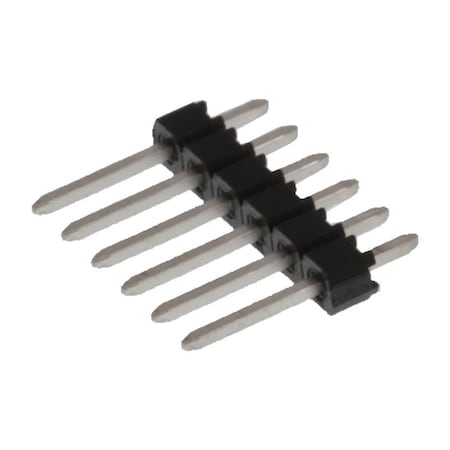

Headers, 2.54MM CGRIDIII HDR 6P VERT SR TIN
Price:
0.36
qty:
21
simpleSku:
jE2NzQ:::90120-0126
sku:
jE2NzQ::WM:90120-0126@y0
condition:
11
seller:
Waldom
amzMan:
molex / waldom
Dimensions:
[1.0, 1.0, 1.0]
Attributes
| Key | Value |
|---|---|
| Applications | Automotive, General Purpose |
| Base Product Number | 090120 |
| Category | Connectors, Interconnects |
| Color | Black |
| Connector Type | Header, Breakaway |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 118.1?in (3.00?m) |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.266" (6.75mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 6POS 2.54MM |
| Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Digi-Key Part Number | WM8076-ND |
| Fastening Type | Push-Pull |
| Features | Breakaway, - |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 2.54 mm |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Insulation Material | Polyester, Glass Filled |
| Manufacturer | Molex |
| Manufacturer Product Number | 0901200126 |
| Manufacturer Standard Lead Time | 17 Weeks |
| Mated Stacking Heights | - |
| Material | Polyester |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 235?C |
| Max. Voltage | 350V AC/DC |
| Mfr | Molex |
| Mounting Type | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature | -55?C ~ 125?C |
| Overall Contact Length | 0.478" (12.15mm) |
| Package | Bulk |
| Package Quantity | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | C-Grid III 90120 |
| Shrouding | Unshrouded |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Board or Cable |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | MOLEX 90120-0126 | 0.36 | 32.4 | 150 | 167 | MOLEX | 0.36 @ Qty: 150+ | |||
| Onlinecomponents.com | 90120-0126 | 0.362 | 11.0048 | 1 | 2520 | MOLEX / WALDOM | 0.362 @ Qty: 50+ | |||
 | Newark | 96W3703 | 0.529 | 16.0816 | 1 | 262 | MOLEX | 0.529 @ Qty: 50+ | ||
 | TME | MX-90120-0126 | 0.668 | 22.712 | 10 | 84 | MOLEX | 0.668 @ Qty: 50+ | ||
 | Digi-Key | 760791 | 0.747 | 22.7088 | 1 | 41414 | Molex | 0.747 @ Qty: 50+ | ||
| RS Delivers | 670-5039 | 0.8988 | 27.32352 | 1 | 65 | Molex | 0.8988 @ Qty: 50+ | |||
 | Zoro | G800442823 | 108.0 | 9720.0 | 150 | 50 | Molex | 108.0 @ Qty: 150+ |
