Morris 97394
Morriszoom
mpn:
brand:
manufacturer:
MPN:
Description:

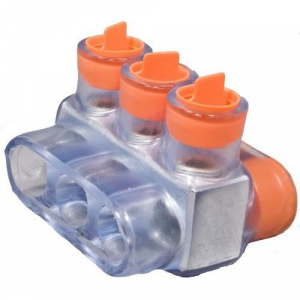

<p><strong>Morris, 97394, 250MCM-#6 3-Port Dual Entry Clear Insulated Multi-Cable Connector </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Clear Insulation allows Visual Confirmation that conductor is properly inserted </li> <li>Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire </li> <li>Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant </li> <li>Pre-filled with Oxide Inhibitor </li> <li>Easy Re-Entry for Changes, Inspection or Troubleshooting </li> <li>Removable Plugs marked with wire size provide easy access for installation. </li> <li>Temperature range of -49?F to 194?F (-45? to 90?C) </li> <li>Wire Entry from Either Side of Clear Insulated Connector </li> <li>Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time </li> <li>One Wire Per Terminal </li> <li>PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field </li> <li>ANSI C119.4 & cULus 486b Listed </li> <li>600 Volt </li> <li>Rated for use with 194?F(90?C) Cables </li> </ul>

Attributes

Key ^Value
Height2.13
Length3.13
Min Order Qty1 Piece
No. of Ports3
Width2.63
Wire Range250MCM - 6
