Morris 97535
Morriszoom
mpn:
brand:
manufacturer:
MPN:
Description:

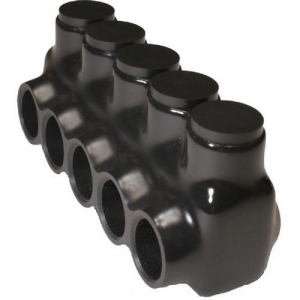

<p><strong>Morris, 97535, 2/0-#6 5-Port Single Entry Insulated Multi-Cable Connector, Small Wire Range </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Wires Enter the Same Side of the Connector </li> <li>Insulated with rugged high-dielectric Rubber/Vinyl Coating </li> <li>Pre-Filled with Oxide Inhibitor </li> <li>Single Side Entry Cable Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires </li> <li>Easy Re-Entry for Changes, Inspection or Troubleshooting </li> <li>Plugs Marked with Connector Max Wire Size for easy identification </li> <li>One wire per terminal </li> <li>Temperature Range of -49?F to 194?F (-45? to 90?C) </li> <li>ANSI C119.4 & cULus 486b Listed thru 750MCM </li> <li>Rated for use with 194?F(90?C Cables) </li> <li>600 Volt </li> </ul>

Attributes

Key ^Value
Allen Hex3/16
Height1.85
Length3.08
Min Order Qty1 Piece
Wire Ports5
Wire Range2/0 - 6
