- mpnLQH2MCN4R7M02L
- brandname: MURATA
- manufacturername: MURATA

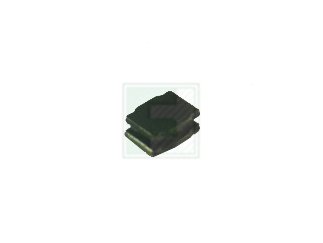

MURATA LQH2MCN4R7M02L LQH series 0806 case size 4.7UH 0.08Ohms 300mA 20% Surface Mount Indutor - 100 item(s)
- Brand: Murata
- PartNumber: LQH2MCN4R7M02L
- Model: LQH2MCN4R7M02L
- PackageQuantity: 1
- Manufacturer: MURATA
- Label: MURATA
Attributes
| Key | Value |
|---|
| Base Product Number | LQH2MCN |
| Brand | MURATA |
| Case | Standard |
| Case - inch | 0806 |
| Case - mm | 2016 |
| Category | Inductors, Coils, Chokes |
| Core Material | Ferrite |
| Current - Saturation (I. | - |
| Current Rating (Amps) | 300mA, 300 mA |
| DC Resistance (DCR) | 1.04Ohm Max |
| Depth | 1.6mm |
| Description | FIXED IND 4.7UH 300MA 1. |
| Detailed Description | 4.7 ?H Unshielded Drum . |
| Digi-Key Part Number | 490-4044-2-ND - Tape & . |
| Dimensions | 2 x 1.6 x 0.9mm |
| Frequency - Self Resona. | 60MHz |
| Height | 0.9mm |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Inductance | 4.7?H, 4.7, 4.7 ?H, Ind. |
| Inductance Frequency - . | 1MHz, 1 MHz |
| Inductor Construction | Wire-Wound |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 2mm |
| Manufacturer | Murata Power Solutions,. |
| Manufacturer Part Number | LQH2MCN4R7M02L |
| Manufacturer Product Nu. | LQH2MCN4R7M02L |
| Manufacturer series | LQH |
| Manufacturer Standard L. | 18 Weeks, 10 Weeks |
| Material - Core | Ferrite |
| Maximum dc Current | 300mA |
| Maximum DC Resistance | 1.04? |
| Maximum Operating Tempe. | +85?C |
| Maximum Self Resonant F. | 60MHz |
| Mfr | Murata Electronics |
| Minimum Operating Tempe. | -40?C |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Operating current | 300mA |
| Operating Temperature | -40?C ~ 85?C, -40 |
| Operating temperature | -40...85?C |
| Package | Tape & Reel (TR) |
| Package / Case | 0806 (2016 Metric) |
| Package/Case | 0806 |
| Packaging | Reel |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Resistance | 1.04? |
| Resonant frequency | 60MHz |
| Series | LQH2, LQH2MC_02 |
| Shielding | Unshielded |
| Size / Dimension | 0.079" L x 0.063" W (2.. |
| SKU | 229688 |
| Standard Package | 3,000 |
| Stock | Stock |
| Supplier Device Package | 0806 (2016 Metric) |
| Tolerance | ?20%, ?20% |
| Type | Wirewound, Inductor, Dr. |
| Type of inductor | wire |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | LQH2MCN4R7M02L | 0.103 | 3000 | 3000 | | Murata | | 0.103 @ 3000 |
| Hotenda | H2156267 | 0.12427 | 1 | 804 | | Murata Electronics | | 0.12427 @ 1 |
 | TME | LQH2MCN4R7M02L | 0.14 | 10 | 3000 | | MURATA | | 0.14 @ 10 |
| Future Electronics | 8005046 | 0.1908 | 3000 | 804 | | Murata | | 0.1908 @ 3000 |
 | Digi-Key | 1016203 | 0.33 | 1 | 23871 | | Murata Electronics | | 0.33 @ 1 |
 | RS Delivers | 786-6769 | 0.3924 | 10 | 305 | | Murata | | 0.3924 @ 10 |
