Murata LQH55DN680M03L

B0734674RM

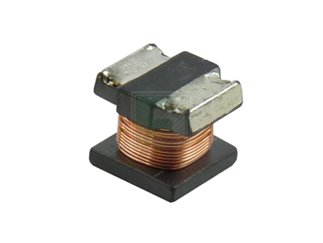

MURATA LQH55DN680M03L LQH55D Series 2220 68 uH ?20% 640 mA 0.938 Ohm SMT Unshielded Wirewound Inductor - 350 item(s)

MURATA LQH55DN680M03L LQH55D Series 2220 68 uH ?20% 640 mA 0.938 Ohm SMT Unshielded Wirewound Inductor - 350 item(s)zoom

Attributes

Key Value
Alternate Part No.81-LQH55DN680M03L
Base Product NumberLQH55DN
BrandMurata Electronics
Case Height4.7 mm
Case Length5.7 mm
Case Width5 mm
CategoryInductors, Coils, Chokes
Current - Saturation (I.-
Current Rating (Amps)640 mA
DC Resistance (DCR)938mOhm Max
DescriptionFIXED IND 68UH 640MA 93.
Detailed Description68 ?H Unshielded Drum C.
Digi-Key Part Number490-11696-2-ND - Tape &.
Frequency - Self Resona.7.6MHz
Height - Seated (Max)0.197" (5.00mm)
Inductance68 uH, 68 ?H
Inductance Frequency - .1 MHz
ManufacturerMurata Electronics, Mur.
Manufacturer Part No.LQH55DN680M03L
Manufacturer Product Nu.LQH55DN680M03L
Manufacturer Standard L.21 Weeks
Material - CoreFerrite
Maximum DC Current640 mA
Maximum DC Resistance670 mOhms
MfrMurata Electronics
Mounting TypeSurface Mount
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
PackageTape & Reel (TR)
Package / Case2220 (5750 Metric)
Package/Case2220 (5750 Metric)
PackagingReel
Product CategoryFixed Inductors
Product StatusActive
Q @ Freq-
Ratings-
Self Resonant Frequency5.6 MHz
SeriesLQH55
ShieldingUnshielded
Size / Dimension0.224" L x 0.197" W (5..
Supplier Device Package2220 (5650 Metric)
Termination StyleSMD/SMT
Tolerance?20%, 20 %
TypeDrum Core, Wirewound
Unit Weight480 mg

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics82176220.83470025Murata0.834 @ 700
HotendaH21874830.9481435025Murata Electronics0.94814 @ 350
thumbzoomDigi-Key25945741.44521561Murata Electronics1.4452 @ 25
RS Delivers725-53391.956151Murata1.956 @ 25
thumbzoomswatee.comLQH55DN680M03L3.211175Murata3.21 @ 25
