name: National Guard
manufacturer:
MPN:
Description:

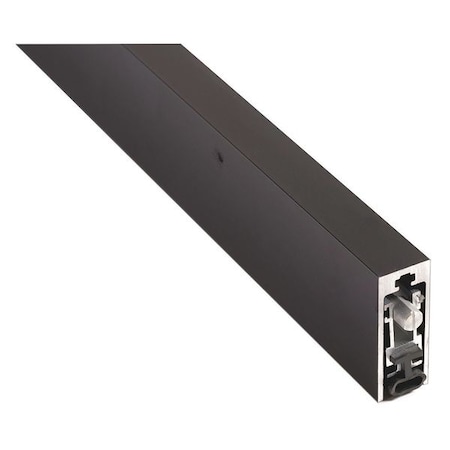

Automatic Door Bottom, Mill Finish, Insert Size 3/8 in, Flange Height 2 5/16 in, Width 15/16 in, Length 36 in, Projection 15/16 in, Insert Material Neoprene, Housing Material Aluminum, Color Black, Performance Heavy Duty, Insert Color Black, Housing Thickness 1/8 in, Flange Material Aluminum, Flange Thickness 3/32 in, Drop Bar Material Aluminum, Hardware Included, For Use With Doors, Standards ANSI/BHMA A156.22, ANSI/UL10B, ANSI/UL10C (Category H), ANSI/UL1784, CAN/ULC-S104
Attributes
| Key ^ | Value |
|---|---|
| Color, Insert Color | Black |
| Drop Bar Material, Housing Material | Aluminum |
| Finish | Mill |
| Flange Finish | Dark Bronze |
| Flange Height | 2 5/16 in |
| Flange Material | 6063 Aluminum Alloy |
| Flange Thickness | 3/32 in |
| Flange Width | 15/16" |
| For Use With | Doors |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Hardware | Included |
| Housing Thickness | 1/8 in |
| Insert Material | Neoprene |
| Insert Size | 3/8 in |
| Item | Automatic Door Bottom |
| Length | 36 in |
| Overall Length | 36" |
| Performance | Heavy Duty |
| Projection, Width | 15/16 in |
| Standards | ANSI/BHMA A156.22, ANSI/UL10B, ANSI/UL10C (Category H), ANSI/UL1784, CAN/ULC-S104 |
