manufacturer:
Description:

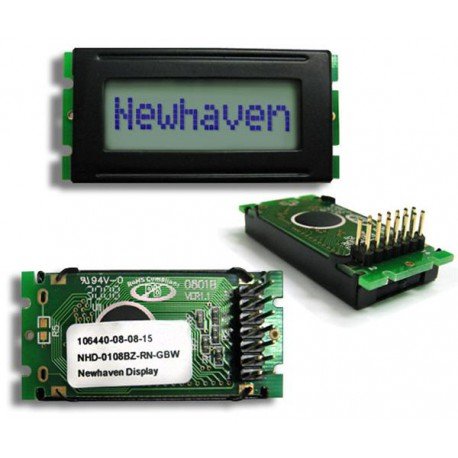

Character Display Modules LCD NHD Series 8x1 STN Gray Reflective 8-Bit Parallel
Weight:
Weight:
0.0440924524 LB
Preferred Price:
13.24
Price:
13.24
Min Simple Price:
6.46
Absolute Min Price:
9.94
Min Price:
9.94
qty:
150
simpleSku:
zEwNDg:::NHD-0108BZ-RN-GBW
sku:
zEwNDg::1I:NHD-0108BZ-RN-GBW@y0
condition:
11
seller:
iodParts
amzMan:
newhaven display
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 763-0108BZ-RN-GBW |
| Background Color, Background Colour | Gray |
| Backlight | Without Backlight |
| Backlight Type | None |
| Base Product Number | NHD-0108 |
| Brand, Manufacturer | Newhaven Display |
| Category | Optoelectronics |
| Character Count x Line, Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Character Size | 7.10mm H x 3.40mm W |
| Controller Type | SPLC780D OR ST7066U |
| Description | LCD MOD 8 DIG 8 X 1 REFLECTIVE |
| Detailed Description | Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 53.00mm x 24.20mm x 11.00mm |
| Digi-Key Part Number | NHD-0108BZ-RN-GBW-ND |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size | 0.60mm W x 0.80mm H |
| Fluid Type | STN |
| Interface | Parallel |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Part No., Manufacturer Part Number, Manufacturer Product Number | NHD-0108BZ-RN-GBW |
| Manufacturer Standard Lead Time | 16 Weeks |
| Manufacturer, Mfr | Newhaven Display Intl |
| Module Size - W x H x T | 53 mm x 24.2 mm x 11 mm |
| Number of Characters | 8 |
| Operating Temperature | -20, -20?C ~ 70?C |
| Operating Temperature Range | - 20 C to + 70 C |
| Outline L x W x H | 53.00mm x 24.20mm x 11.00mm |
| Package | Box |
| Packaging | Bulk |
| Product | LCD Character Display Modules |
| Product Category | LCD Character Display Modules & Accessories |
| Product Status | Active |
| Series | - |
| Standard Package | 50 |
| Supply Voltage | 5 V |
| Text Color | Blue |
| Viewing Area | 35.00mm L x 12.60mm W |
| Viewing Area - W x H | 35 mm x 12.6 mm |
| Voltage - Supply | 4.7V ~ 5.5V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| iodParts | NHD-0108BZ-RN-GBW | 6.46 | 133.076 | 50 | 150 | Newhaven Display | 6.46 @ Qty: 50+ | |||
| Hawk Electronics | NHD-0108BZ-RN-GBW | 6.5 | 6.5 | 1 | In Stock | Newhaven | 6.5 @ Qty: 1+ | |||
| Hotenda | H2861282 | 7.55 | 7.55 | 1 | In Stock | Newhaven Display, Intl. | 7.55 @ Qty: 1+ | |||
 | Digi-Key | 1701125 | 8.76 | 8.76 | 1 | 4980 | Newhaven Display Intl | 8.76 @ Qty: 1+ | ||
 | swatee.com | NHD-0108BZ-RN-GBW | 11.18 | 11.18 | 1 | 148 | Newhaven Display | 11.18 @ Qty: 1+ |
