| Application | Air, Gases, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Connection Type | Cup x Cup |
| Copper Tube Size | 1 1/4 in x 1 1/4 in |
| Country of Origin (subject to change) | United States |
| End Connection Type, Fitting Side A Connection Type, Fitting Side B Connection Type | Cup |
| Fitting Connection Type, Pipe Fitting Connection Type | C x C |
| Fitting Copper Tube Size, Fitting Side A Copper Tube Size, Fitting Side B Copper Tube Size | 1 1/4 in |
| Fitting Material, Pipe Fitting Material, Tube Fitting Material | Wrot Copper |
| Fitting Side A Tube Outer Diameter, Fitting Side B Tube Outer Diameter, For Tube Outside Diameter | 1 3/8 in |
| For Tube OD | 1 3/8 in x 1 3/8 in |

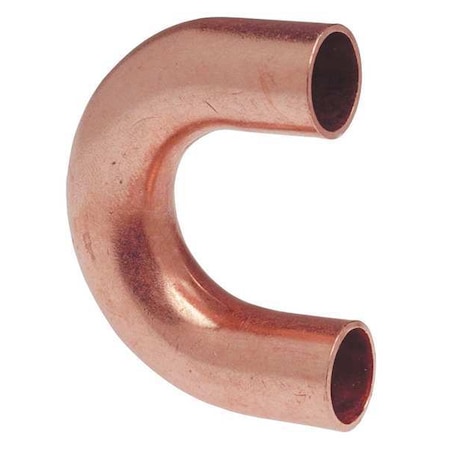

| Item, Specific Fitting Shape, Specific Pipe Fitting Shape, Stop and Shape | Return Bend |
| Material Grade | C12200 |
| Max. Pressure | 351 psi@200 Degrees F |
| Maximum Operating Pressure | 351 psi @ 200 Degrees F |
| Maximum Operating Temperature | 400 Degrees F |
| Minimum Operating Temperature | 20 Degrees F |
| Outside Dia. | 1-3/8" (4" C to C) |
| Resistance Properties | Dezincification-Resistant |
| Standards | ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas) |
| Temp. Range | -20 Degrees to 400 Degrees F |
| Tube Size | 1-1/4" |
