| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |

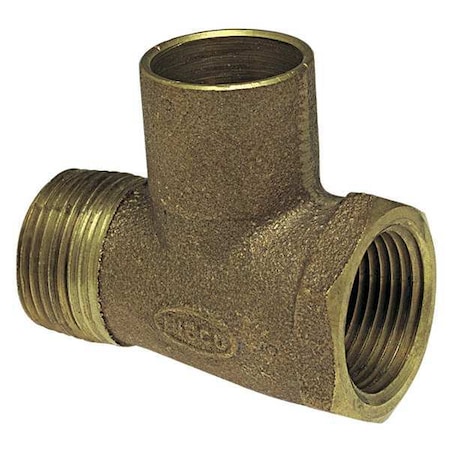

| Basic Pipe Fitting Shape, Fitting Shape, Item, Specific Fitting Shape, Specific Pipe Fitting Shape | Tee |
| Connection Type | FNPT x MNPT x Cup |
| Copper Tube Size, Fitting Copper Tube Size, Fitting Pipe Size, Fitting Side A Pipe Size, Fitting Side B Pipe Size, Fitting Side C Copper Tube Size | 3/4 in |
| Country of Origin (subject to change) | Mexico |
| End Connection Type | Cup, Threaded |
| Fitting Connection Type, Pipe Fitting Connection Type | FNPT x MNPT x C |
| Fitting Material | Bronze |
| Fitting Side A Connection Type | FNPT |
| Fitting Side B Connection Type | MNPT |
| Fitting Side C Connection Type | Cup |
| Fitting Side C Tube Outer Diameter, For Tube OD, For Tube Outside Diameter | 7/8 in |
| Max. Pressure, Maximum Operating Pressure | 466 psi |
| Maximum Operating Temperature | 200 Degrees F |
| Minimum Operating Temperature | 20 Degrees F |
| Outside Dia. | 7/8" |
| Pipe Fitting Material, Tube Fitting Material | Low Lead Cast Bronze |
| Pipe Size | 3/4 in x 3/4 in |
| Pipe Size (Fittings), Pipe Size - Pipe Fitting, Tube Size | 3/4" |
| Resistance Properties | Dezincification-Resistant |
| Standards | ASTM B584 Alloy C87850; Third-Party Certified To NSF/ANSI 61 Annex G; ASME B16.18 Design Standards |
| Stop and Shape | Adapter Tee |
| Temp. Range | -20 Degrees to 200 Degrees F |
