Nichicon LGN2G331MELA45

mpnLGN2G331MELA45
brandname: Nichicon
manufacturername: Nichicon

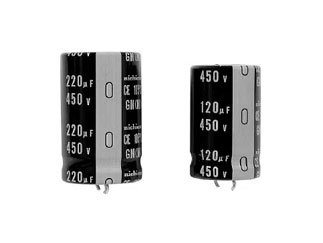

NICHICON LGN2G331MELA45 GN Series 330 uF 400 V 105?C ?25 x 45 mm Snap-In Aluminum Electrolytic Cap - 5 item(s)

NICHICON LGN2G331MELA45 GN Series 330 uF 400 V 105?C ?25 x 45 mm Snap-In Aluminum Electrolytic Cap - 5 item(s)

zoom

Brand: Nichicon
PartNumber: LGN2G331MELA45
Model: LGN2G331MELA45
PackageQuantity: 1
Manufacturer: NICHICON
Label: NICHICON

Attributes

Key	Value
Applications	General Purpose
Body dimensions	?25x45mm
Capacitance	330 ?F, 330?F
Capacitors features	small sized body
Category	Capacitors
ESR (Equivalent Series .	-
Height - Seated (Max)	1.850" (47.00mm)
Lead Spacing	0.394" (10.00mm)
Leakage current	1.08mA
Lifetime @ Temp.	3000 Hrs @ 105?C
Manufacturer	NICHICON
Mfr	NICHICON
Mounting	SNAP-IN
Mounting Type	Through Hole
Operating current	1440mA
Operating Temperature	-25?C ~ 105?C
Operating temperature	-25...105?C
Operating voltage	400V DC
Package	Bulk
Package / Case	Radial, Can - Snap-In
Part Status	Active
Polarization	Polar
Ratings	-
Ripple Current @ High F.	2.0592 A @ 50 kHz
Ripple Current @ Low Fr.	1.44 A @ 120 Hz
Series	LGN
Service life	3000h
Size / Dimension	0.984" Dia (25.00mm)
Surface Mount Land Size	-
Tolerance	?20%
Type of capacitor	electrolytic
Voltage - Rated	400 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	58R4626	3.33	250	5		NICHICON		3.33 @ 250
	Hotenda	H252491	4.47	1	9		Nichicon		4.47 @ 5
	TME	LGN2G331MELA45	5.08	50	5		NICHICON		5.08 @ 50
	us.rs-online.com	72038327	5.66	250	250		Nichicon		5.66 @ 250
	Digi-Key	2540430	6.5	1000	5		Nichicon		6.5 @ 5
