Nichicon UBW1K471MHD

mpnUBW1K471MHD
brandname: Nichicon
manufacturername: Nichicon

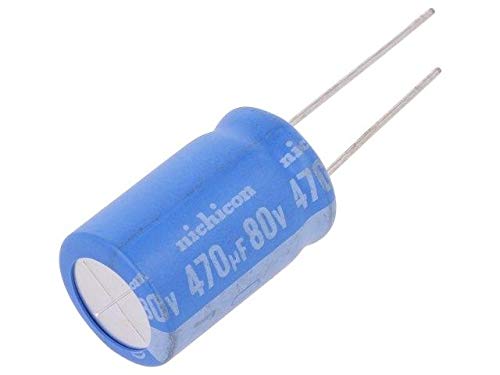

NICHICON UBW1K471MHD BW Series 80 V 470 uF 16 x 25 mm LS=7.5 mm Aluminum Electrolytic Capacitor - 100 item(s)

NICHICON UBW1K471MHD BW Series 80 V 470 uF 16 x 25 mm LS=7.5 mm Aluminum Electrolytic Capacitor - 100 item(s)

zoom

Brand: Nichicon
PartNumber: UBW1K471MHD
Model: UBW1K471MHD
PackageQuantity: 1
Manufacturer: NICHICON
Label: NICHICON

Attributes

Key	Value
Applications	Automotive
Body dimensions	?16x25mm
Capacitance	470 ?F, 470?F
Capacitor application	automobile electronics
Capacitors series	UBW
Category	Capacitors
Description	CAP ALUM 470UF 20% 80V .
Detailed Description	470 ?F 80 V Aluminum El.
Digi-Key Part Number	493-16652-ND
ESR (Equivalent Series .	-
Height - Seated (Max)	1.063" (27.00mm)
Impedance	0.11?, 110 mOhms
Lead Spacing	0.295" (7.50mm)
Lifetime @ Temp.	3000 Hrs @ 135?C
Manufacturer	Nichicon
Manufacturer Product Nu.	UBW1K471MHD
Manufacturer Standard L.	34 Weeks
Mfr	Nichicon
Mounting	THT
Mounting Type	Through Hole
Operating current	1500mA
Operating Temperature	-55?C ~ 135?C
Operating temperature	-55...135?C
Operating voltage	80V DC
Package	Bulk
Package / Case	Radial, Can
Polarization	Polar
Product Status	Active
Ratings	-
Ripple Current @ High F.	1.5 A @ 100 kHz
Ripple Current @ Low Fr.	750 mA @ 120 Hz
Series	UBW
Service life	3000h
Size / Dimension	0.630" Dia (16.00mm)
Surface Mount Land Size	-
Terminal pitch	7.5mm
Tolerance	?20%
Type of capacitor	electrolytic
Voltage - Rated	80 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	UBW1K471MHD	1.08	200	100		NICHICON		1.08 @ 200
	Newark	58R6810	1.45	400	100		NICHICON		1.45 @ 100
	Digi-Key	2597519	1.6803	1	100		Nichicon		1.6803 @ 100
	Allied Electronics	E4765875	1.813	100	100		Nichicon		1.813 @ 100
	Radwell	UBW1K471MHD	2.24	1	100		NICHICON		2.24 @ 100
