Nichicon UCL1V100MCL1GS

mpnUCL1V100MCL1GS
brandname: Nichicon
manufacturername: Nichicon

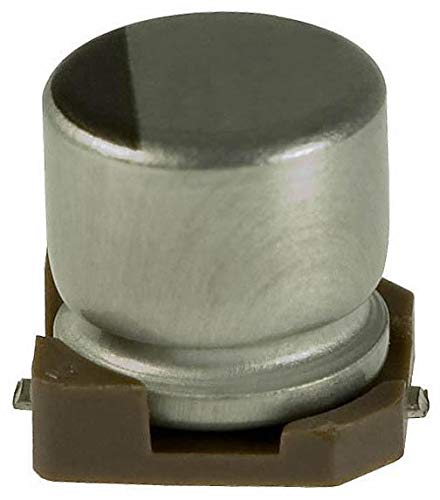

Nichicon Aluminum Electrolytic Capacitor, 10Uf, 35V, 20%, SMD - UCL1V100MCL1GS

Nichicon Aluminum Electrolytic Capacitor, 10Uf, 35V, 20%, SMD - UCL1V100MCL1GS

zoom

Brand: Nichicon
PartNumber: UCL1V100MCL1GS
Model: UCL1V100MCL1GS
PackageQuantity: 1
Manufacturer: Nichicon
Label: Nichicon

Attributes

Key	Value
Applications	General Purpose
Capacitance	10 ?F
Category	Capacitors
ESR (Equivalent Series .	-
Height - Seated (Max)	0.228" (5.80mm)
Impedance	360 mOhms
Lead Spacing	-
Lifetime @ Temp.	2000 Hrs @ 105?C
Mfr	Nichicon
Mounting Type	Surface Mount
Operating Temperature	-55?C ~ 105?C
Package	Tape & Reel (TR)
Package / Case	Radial, Can - SMD
Part Status	Active
Polarization	Polar
Ratings	-
Ripple Current @ High F.	240 mA @ 100 kHz
Ripple Current @ Low Fr.	120 mA @ 120 Hz
Series	UCL
Size / Dimension	0.197" Dia (5.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5..
Tolerance	?20%
Voltage - Rated	35 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H248878	0.11286	1	1000		Nichicon		0.11286 @ 1000
	us.rs-online.com	72038193	0.15546	20	1000		Nichicon		0.15546 @ 1000
	Digi-Key	2300297	0.18354	500	1000		Nichicon		0.18354 @ 1000
	Newark	84R9006	0.22	2000	1000		NICHICON		0.22 @ 2000
