Description:

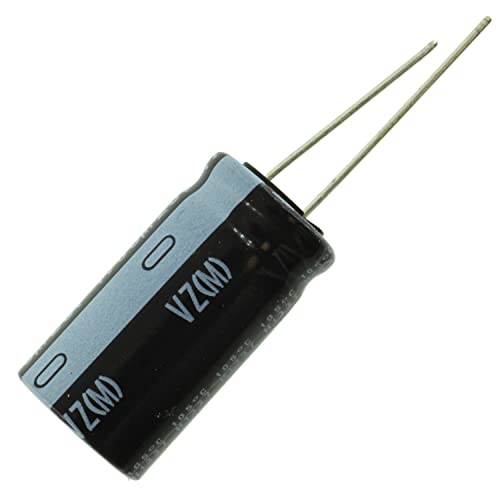

Capacitor, Aluminum Electrolytic, Cap 4.7uF 20% Radial 10X12.5 LS 5mm
Preferred Price:
1.44
Price:
1.44
Min Simple Price:
0.10392
Absolute Min Price:
1.55
Min Price:
1.55
Dimensions:
[1.0, 1.0, 1.0]
qty:
544
simpleSku:
MjcwMQ:::UVZ2V4R7MPD
sku:
MjcwMQ::1K:UVZ2V4R7MPD@y0
condition:
11
seller:
Future Electronics
amzMan:
nichicon
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 647-UVZ2V4R7MPD |
| Applications | General Purpose |
| Brand, Manufacturer, Mfr | Nichicon |
| Capacitance | 4.7 ?F, 4.7 uF |
| Capacitance Range | 1 to 99 uF |
| Case Diameter | 10 mm |
| Case Length | 12.5 mm |
| Case Size | Dia. 0.394 x L 0.492 in ; Dia. 10 x L 12.5 mm |
| Category | Capacitors |
| Configuration | Radial ; Can |
| Dimensions | 10 mm Dia. x 12.5 mm L |
| Dissipation Factor DF | 0.25 |
| Element Material | Aluminum Electrolytic |
| ESR (Equivalent Series Resistance), Ratings, Surface Mount Land Size | - |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Lead Spacing | 5 mm, 0.197 In. (5.00 mm) mm, 0.197" (5.00mm) |
| Lead Style | Straight |
| Leakage Current | 165.8 uA |
| Lifetime @ Temp. | 1000 Hrs @ 105?C |
| Load Life | 1000 h |
| Manufacturer Part No. | UVZ2V4R7MPD |
| Maximum Operating Temperature | + 105 C |
| Minimum Operating Temperature | -40 C |
| Mounting Type | PCB Mount |
| Mounting Type, Termination | Through Hole |
| Operating Temperature | -40?C ~ 105?C |
| Package / Case | Radial, Can |
| Package, Packaging | Bulk |
| Polarization | Polar |
| Product | General Purpose Electrolytic Capacitors |
| Product Category | Aluminium Electrolytic Capacitors - Leaded |
| Product Status | Not For New Designs |
| Ripple Current | 45 mA |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Series | UVZ, VZ, UVZ Series |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Termination Style | Radial |
| Tolerance | 20% %, ?20%, 20 % |
| Type | Wide Temperature Range Aluminum Electrolytic Capacitors |
| Voltage - Rated, Voltage Rating DC | 350 V |
| Voltage Rating | 350 VDC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Future Electronics | 4011859 | 0.10392 | 89.3712 | 2000 | 100 | Nichicon | 0.10392 @ Qty: 2000+ | |||
| us.rs-online.com | 70187913 | 0.18363 | 143.2314 | 1800 | 100 | Nichicon | 0.18363 @ Qty: 1800+ | |||
| Hotenda | H246311 | 0.1989 | 12.01356 | 1 | 100 | Nichicon | 0.1989 @ Qty: 100+ | |||
| Digi-Key | 589178 | 0.2838 | 17.14152 | 1 | 100 | Nichicon | 0.2838 @ Qty: 100+ | |||
 | swatee.com | UVZ2V4R7MPD | 0.66 | 39.864 | 1 | 943 | Nichicon | 0.66 @ Qty: 100+ |
