NKK Switches JWL11BCA-H

B010IJ9PL2

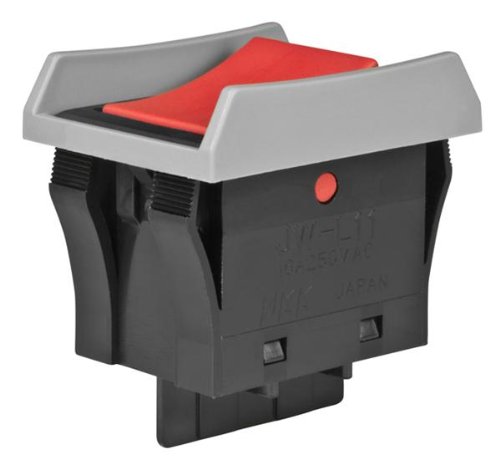

NKK Switches Part Number JWL11BCA-H

NKK Switches Part Number JWL11BCA-Hzoom

Attributes

Key Value
ActuatorRocker
Actuator MarkingNo Marking
Actuator TypeConcave (Curved)
Alternate Part No.633-JWL11BCA-H
Base Product NumberJWL11B
BrandNKK Switches
CategorySwitches
CircuitSPST
ColorGray
Color - Actuator/CapRed
Contact FormSPST
Contact PlatingSilver
Contact Rating16 A at 125 VAC, 250 VAC
Current Rating16 A
Current Rating (Amps)16A (AC)
DescriptionSWITCH ROCKER SPST 16A .
Detailed DescriptionRocker Switch SPST 16A .
Digi-Key Part NumberJWL11BCA-H-ND
Electrical Life25,000 Cycles
FeaturesEpoxy Sealed Terminals
Housing MaterialPolyamide
Illumination Type, Color-
Illumination Voltage (N.-
Ingress ProtectionDust Proof
ManufacturerNKK Switches
Manufacturer Part No.JWL11BCA-H
Manufacturer Product Nu.JWL11BCA-H
Manufacturer Standard L.43 Weeks
Mechanical Life25,000 Cycles
MfrNKK Switches
Mounting HoleRectangular
Mounting Hole Size29.5 mm x 15.4 mm
Mounting StylePanel
Mounting TypePanel Mount, Snap-In
Operating Temperature-25?C ~ 70?C
Operating Temperature R.- 25 C to + 70 C
PackageBulk
Panel Cutout DimensionsRectangular - 29.50mm x.
Product CategoryRocker Switches
Product StatusActive
SeriesJWL - With Barrier, JW
Switch FunctionON - OFF, On-Off
Terminal SealEpoxy
Termination StyleSolder Lug, Solder, Qui.
Voltage Rating - AC125 V
Voltage Rating AC250 V
Voltage Rating DC72 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomswatee.comJWL11BCA-H9.74141NKK Switches9.74 @ 1
thumbzoomDigi-Key210427412.2761In StockNKK Switches12.276 @ 1
Newark10X030815.31In StockNKK SWITCHES15.3 @ 1
