Description:

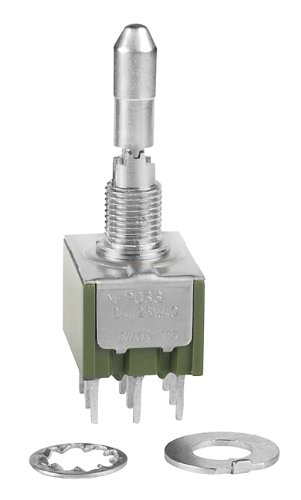

Switch,Toggle,3PDT,ON-OFF-ON,.201" Locking Actuator,No Cap,6A,125VAC,.250 Str PC
Preferred Price:
17.07
Price:
17.07
Min Simple Price:
8.522784
Absolute Min Price:
12.74
Min Price:
12.74
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
MTMwNA:::M2033LL1W03
sku:
MTMwNA::GO:M2033LL1W03@y0
condition:
11
seller:
Digi-Key
amzMan:
nkk switches
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Actuator Length | 16.50mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator, Actuator Type | Locking Lever |
| Alternate Part No. | 633-M2033LL1W03 |
| Base Product Number | M2033LL |
| Brand, Manufacturer, Mfr | NKK Switches |
| Bushing Size | 0.291 in (7.4 mm) |
| Bushing Thread | 1/4-40 |
| Category | Switches |
| Circuit, Contact Form | 3PDT |
| Contact Plating | Silver |
| Current Rating | 6 A, 3 A |
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Description | SWITCH TOGGLE 3PDT 6A 125V |
| Detailed Description | Toggle Switch 3PDT Panel Mount |
| Digi-Key Part Number | M2033LL1W03-ND |
| Electrical Life | 25,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Illumination Type, Color, Illumination Voltage (Nominal), Ingress Protection | - |
| Manufacturer Part No., Manufacturer Product Number | M2033LL1W03 |
| Mounting Style | Panel |
| Mounting Type | Panel Mount |
| Operating Temperature | -30?C ~ 85?C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Part # Aliases | M-2033NLP |
| Product Category | Toggle Switches |
| Product Status | Obsolete |
| Series | M |
| Switch Function | ON - OFF - ON, On-Off-On |
| Terminal Seal | Sealed |
| Termination Style | Solder Pin, PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC, Voltage Rating DC | 30 V |
| Voltage Rating AC | 125 V, 250 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Digi-Key | 1048619 | 8.522784 | 3414.2272704 | 1000 | In Stock | NKK Switches | 8.522784 @ Qty: 1000+ | ||
 | swatee.com | M2033LL1W03 | 15.3 | 15.3 | 1 | 46 | NKK Switches | 15.3 @ Qty: 1+ |
