- mpnMS13ANW03
- brandname: NKK Switches
- manufacturername: NKK Switches

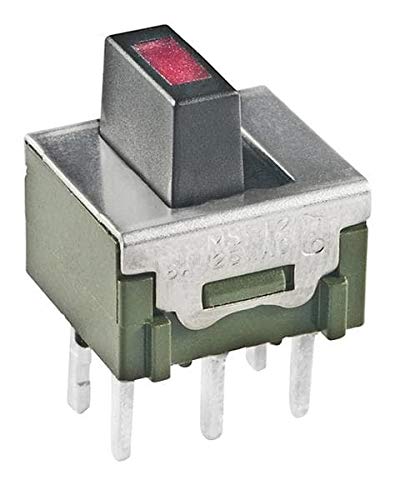

NKK SWITCHES MS13ANW03 SWITCH, SLIDE, SPDT, 6A, 250V, TH
- Brand: NKK
- PartNumber: MS12LNW03C
- PackageQuantity: 1
- Manufacturer: NKK
- Label: NKK
Attributes
| Key | Value |
|---|
| AC contacts rating @R | 3A / 250V AC |
| Actuator | Wide for single or Doub. |
| Actuator Length | 5.10mm |
| Actuator Material | Polybutylene Terephthal. |
| Actuator Type | Standard |
| Alternate Part No. | 633-MS13ANW03 |
| Body Dimension | 0.500 in. L x 0.252 in.. |
| Body dimensions | 12.7x6.6x6.4mm |
| Body Material | Glass Fibre Reinforced . |
| Body Style | Miniature |
| Brand | NKK SWITCHES |
| Category | Switches |
| Circuit | SPDT |
| Contact Current Rating | 6 A at 125 V |
| Contact Finish | Silver |
| Contact Form | SPDT |
| Contact material | silver alloy |
| Contact Material | Silver, silver alloy |
| Contact Plating | silver alloy |
| Contact Resistance | 10 mOhms |
| Contact Timing | Non-Shorting (BBM) |
| Contacts configuration | SP3T |
| Current Rating | 6 A |
| Current Rating (Amps) | 6A (AC) |
| Dielectric Strength | 1500 VAC |
| Electrical Life | 25,000 Cycles, 25000 Op. |
| Electrical life | 25000 cycles |
| Features | Epoxy Sealed Terminals |
| Insulation Resistance | 1000 MegaOhms |
| Leads | for PCB |
| Manufacturer | NKK SWITCHES |
| Manufacturer Part No. | MS13ANW03 |
| Manufacturer series | MS |
| Max. contact resistance: | 10m? |
| Maximum Operating Tempe. | 85 ?C |
| Mechanical Life | 100,000 Cycles, 100000 . |
| Mfr | NKK SWITCHES |
| Min. insulation resista. | 1G? |
| Minimum Operating Tempe. | -30 ?C |
| Mounting | THT |
| Mounting Hole Size | 0.94 in |
| Mounting Type | Through Hole, PCB Mount |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Number of positions | 3 |
| Operating Force | - |
| Operating Temperature | -30?C ~ 85?C |
| Operating temperature | -30...85?C |
| Operating Temperature R. | - 30 C to + 85 C |
| Operation | On Off On |
| Package | Bulk |
| Part # Aliases | MS-13AAP1 |
| Product Category | Slide Switches |
| Product Status | Active |
| Series | MS Series, MS |
| Stable positions number | 3 |
| Switch Function | ON - OFF - ON, ON-OFF-ON |
| Switch Travel | 3.50mm |
| Switching method | ON-OFF-ON |
| Termination | PCB Pins |
| Termination Style | PC Pin, Straight PC |
| Type | Slides, slide |
| Type of switch | slide |
| Voltage Rating | 125 VAC |
| Voltage Rating - AC | 125 V |
| Voltage Rating AC | 125 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Arrow | MS13ANW03 | 3.09 | 1 | 32 | | NKK Switches | | 3.09 @ 1 |
| Mouser | 633-MS13ANW03 | 3.87 | 1 | 267 | | NKK Switches | | 3.87 @ 1 |
| TME | MS13ANW03 | 4.26 | 1 | 23 | | NKK SWITCHES | | 4.26 @ 1 |
| us.rs-online.com | 70192877 | 4.8 | 1 | 150 | | NKK Switches | | 4.8 @ 1 |
| Digi-Key | 1052895 | 4.8 | 1 | 23 | | NKK Switches | | 4.8 @ 1 |
| Future Electronics | 6708630 | 5.268 | 100 | 32 | | NKK Switches | | 5.268 @ 100 |
 | swatee.com | MS13ANW03 | 7.42 | 1 | 20 | | NKK Switches | | 7.42 @ 1 |
