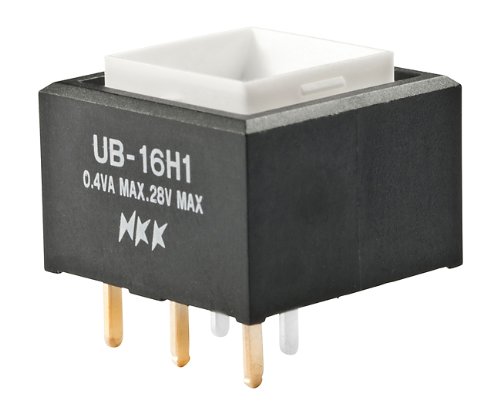

NKK Switches UB16SKG035D LOW PROFILE PUSHBUTTON/ILLUMINATED/PC AND SOLDER

NKK Switches UB16SKG035D LOW PROFILE PUSHBUTTON/ILLUMINATED/PC AND SOLDERzoom

Attributes

Key Value
AC contacts rating @R0.1A / 28V AC
Actuator MarkingNo Marking
Actuator TypePlunger for Cap
Backlight colouramber
Base Product NumberUB16SKG
Body dimensions15.24x15.24x10mm
CategorySwitches
CircuitSPDT
Color - Actuator/Cap-
Contact materialcopper
Contact platinggold-plated
Contacts configurationSPDT
Current Rating (Amps)0.4VA (AC/DC)
DC contacts rating @R0.1A / 28V DC
Electrical Life200,000 Cycles
Electrical life200000 cycles
FeaturesProcess Sealed
IlluminationLED
Illumination Type, ColorLED, Amber
Illumination Voltage (N.2 VDC
Ingress Protection-
Leadsfor PCB
ManufacturerNKK Switches
Manufacturer seriesUB
Max. contact resistance:100m?
Mechanical Life200,000 Cycles
MfrNKK Switches
Min. insulation resista.200M?
MountingTHT
Mounting TypeThrough Hole
Number of positions2
Operating Temperature-25?C ~ 50?C
Operating temperature-25...50?C
PackageBulk
Panel Cutout Dimensions-
Product StatusActive
SeriesUB
Stable positions number2
Switch FunctionOn-On
Switching methodOn-On
Termination StylePC Pin
TypeStandard, Illuminated
Type of switchpush-button
Voltage Rating - AC28 V
Voltage Rating - DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key210675210.811In StockNKK Switches10.81 @ 1
TMEUB16SKG035D11.151In StockNKK SWITCHES11.15 @ 1
Newark11X436115.71In StockNKK SWITCHES15.7 @ 1
