- mpnUB25SKW035D
- brandname: NKK Switches
- manufacturername: NKK Switches

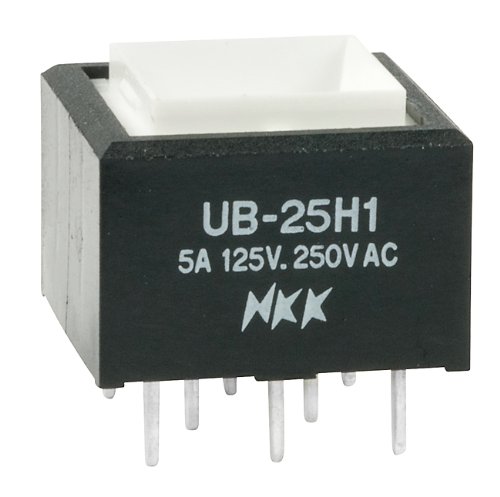

NKK Switches Part Number UB25SKW035D
- Brand: NKK Switches
- PartNumber: UB25SKW035D
- Manufacturer: NKK Switches
- Label: NKK Switches
Attributes
| Key | Value |
|---|
| AC contacts rating @R | 5A / 250V AC |
| Actuator | Without Cap |
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Alternate Part No. | 633-UB25SKW035D |
| Backlight colour | amber |
| Base Product Number | UB25SKW |
| Body dimensions | 15.24x15.24x10mm |
| Brand | NKK Switches |
| Category | Switches |
| Circuit | DPDT |
| Color - Actuator/Cap | - |
| Contact Form | DPDT |
| Contact material | silver alloy |
| Contact Plating | Silver |
| Contacts configuration | DPDT |
| Current Rating | 5 A |
| Current Rating (Amps) | 5A (AC/DC) |
| DC contacts rating @R | 5A / 30V DC |
| Description | SWITCH PUSHBUTTON DPDT . |
| Detailed Description | Pushbutton Switch DPDT . |
| Digi-Key Part Number | UB25SKW035D-ND |
| Electrical Life | 10,000 Cycles |
| Electrical life | 10000 cycles |
| Features | Button/cap ordered sepa. |
| Flammability Rating | UL 04 V-0 |
| Housing Material | Polyamide, Glass Fiber . |
| Illumination | LED |
| Illumination Colour | Amber, Bright LED |
| Illumination Type, Color | LED, Amber |
| Illumination Voltage (N. | 2 VDC |
| Ingress Protection | - |
| Leads | for PCB |
| Manufacturer | NKK Switches |
| Manufacturer Part No. | UB25SKW035D |
| Manufacturer Product Nu. | UB25SKW035D |
| Manufacturer series | UB |
| Manufacturer Standard L. | 24 Weeks |
| Max. contact resistance: | 50m? |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | NKK Switches |
| Min. insulation resista. | 200M? |
| Mounting | THT |
| Mounting Style | Through Hole |
| Mounting Type | Through Hole |
| Number of positions | 2 |
| Operating Temperature | -25?C ~ 50?C |
| Operating temperature | -25...50?C |
| Package | Bulk |
| Panel Cutout Dimensions | - |
| Product Category | Illuminated Pushbutton . |
| Product Status | Active |
| Series | UB |
| Stable positions number | 1 |
| Switch Function | ON - (ON), On-Mom |
| Switching method | ON-(ON) |
| Terminal Seal | Epoxy |
| Termination Style | PC Pin, Solder Pin |
| Type | Standard, Illuminated |
| Type of switch | push-button |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Voltage Rating AC | 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | 2107019 | 11.35 | 1 | 1 | | NKK Switches | | 11.35 @ 1 |
| TME | UB25SKW035D | 11.98 | 1 | In Stock | | NKK SWITCHES | | 11.98 @ 1 |
 | swatee.com | UB25SKW035D | 15.81 | 1 | 383 | | NKK Switches | | 15.81 @ 1 |
| Newark | 11X5055 | 16.48 | 1 | In Stock | | NKK SWITCHES | | 16.48 @ 1 |
