- mpnUB25SKW036G
- brandname: NKK Switches
- manufacturername: NKK Switches

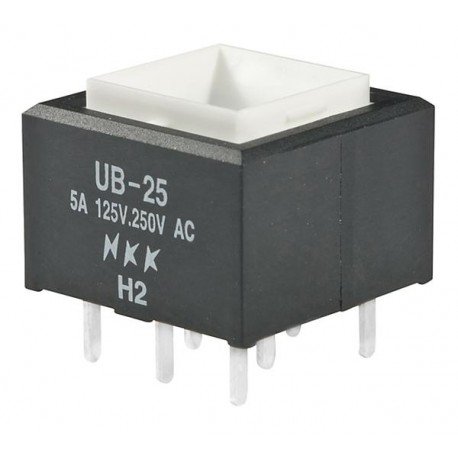

Illuminated Pushbutton Switches SQ DPDT ON(ON) BLUE LED PC BODY ONLY 6A
- PartNumber: UB25SKW036G
- Model: UB25SKW036G
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: NKK Switches
- Label: NKK Switches
Attributes
| Key | Value |
|---|
| AC contacts rating @R | 5A / 250V AC |
| Actuator | Without Cap |
| Actuator Marking | No Marking |
| Actuator Type | -, Plunger for Cap |
| Alternate Part No. | 633-UB25SKW036G |
| Backlight colour | blue |
| Base Product Number | UB25SKW |
| Body dimensions | 15.24x15.24x10mm |
| Brand | NKK Switches |
| Category | Switches |
| Circuit | DPDT, On-Mom |
| Color - Actuator/Cap | LED, Blue, - |
| Contact Form | SPDT |
| Contact material | silver alloy |
| Contact Plating | Silver |
| Contacts configuration | DPDT |
| Current Rating | 5 A |
| Current Rating (Amps) | 5A (AC/DC), Plunger for. |
| DC contacts rating @R | 5A / 30V DC |
| Electrical Life | 10,000 Cycles, 125 V |
| Electrical life | 10000 cycles |
| Features | Stainless Steel, -, But. |
| Illumination | LED |
| Illumination Colour | Blue, Super Bright |
| Illumination Type, Color | LED, Blue, 2.9 VDC |
| Illumination Voltage (N. | PC Pin, 2.9 VDC |
| Ingress Protection | Epoxy Sealed Terminals,. |
| Leads | for PCB |
| Manufacturer | NKK Switches |
| Manufacturer Part No. | UB25SKW036G |
| Manufacturer series | UB |
| Max. contact resistance: | 50m? |
| Mechanical Life | 10,000 Cycles, 1,000,00. |
| Mfr | NKK Switches |
| Min. insulation resista. | 200M? |
| Mounting | THT |
| Mounting Style | Through Hole |
| Mounting Type | Standard, Illuminated, . |
| Number of positions | 2 |
| Operating Temperature | -25?C ~ 50?C, 1,000,000. |
| Operating temperature | -25...50?C |
| Package | Active, Bulk |
| Panel Cutout Dimensions | -25?C ~ 50?C, - |
| Part # Aliases | UB-25H2SKP1B |
| Part Status | Through Hole |
| Product Category | Illuminated Pushbutton . |
| Product Status | Active |
| Series | Bulk, UB2, UB |
| Stable positions number | 1 |
| Switch Function | 5A (AC/DC), ON - (ON), . |
| Switching method | ON-(ON) |
| Terminal Seal | Epoxy |
| Termination Style | PC Pin, Solder Pin, - |
| Type | DPDT, Standard, Illumin. |
| Type of switch | push-button |
| Voltage Rating - AC | 30 V, 125 V |
| Voltage Rating - DC | 30 V |
| Voltage Rating AC | 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| TME | UB25SKW036G | 20.51 | 1 | In Stock | | NKK SWITCHES | | 20.51 @ 1 |
| Digi-Key | 2107025 | 24.74 | 1 | In Stock | 110 | NKK Switches | | 24.74 @ 1 |
 | swatee.com | UB25SKW036G | 27.75 | 1 | 42 | | NKK Switches | | 27.75 @ 1 |
| Newark | 11X5069 | 34.65 | 1 | In Stock | | NKK SWITCHES | | 34.65 @ 1 |
