- mpnYB15CKG01
- brandname: NKK Switches
- manufacturername: NKK Switches

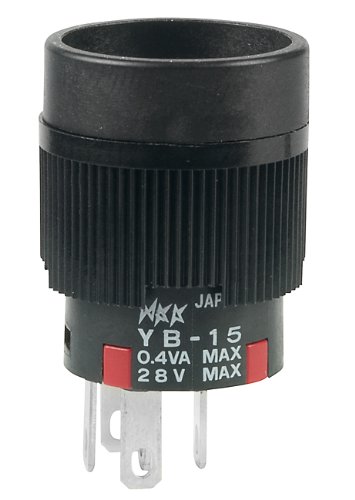

NKK Switches Part Number YB15CKG01
- Brand: NKK Switches
- PartNumber: YB15CKG01
- Model: YB15CKG01
- PackageQuantity: 1
- Manufacturer: NKK Switches
- Label: NKK Switches
Attributes
| Key | Value |
|---|
| Actuator | Without Cap |
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Alternate Part No. | 633-YB15CKG01 |
| Base Product Number | YB15CK |
| Brand | NKK Switches |
| Category | Switches |
| Circuit | SPDT |
| Color - Actuator/Cap | - |
| Contact Form | SPDT |
| Contact Plating | Gold |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Description | SWITCH PUSH SPDT 0.4VA . |
| Detailed Description | Pushbutton Switch SPDT . |
| Digi-Key Part Number | YB15CKG01-ND |
| Electrical Life | 100,000 Cycles |
| Features | Stainless Steel, Button. |
| Flammability Rating | UL 94 V-0 |
| Housing Material | Polyamide, Glass Fiber . |
| Illumination Type, Color | - |
| Illumination Voltage (N. | - |
| Ingress Protection | - |
| Manufacturer | NKK Switches |
| Manufacturer Part No. | YB15CKG01 |
| Manufacturer Product Nu. | YB15CKG01 |
| Manufacturer Standard L. | 35 Weeks |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | NKK Switches |
| Mounting Style | Panel |
| Mounting Type | Panel Mount, Front |
| Operating Temperature | -25?C ~ 70?C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Power Rating | 0.4 VA |
| Product Category | Pushbutton Switches |
| Product Status | Active |
| Series | YB |
| Switch Function | ON - (ON), On-Mom |
| Termination Style | Solder Lug, Solder, Qui. |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Voltage Rating AC | 28 V |
| Voltage Rating DC | 28 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | 2107179 | 8.7 | 1 | In Stock | | NKK Switches | | 8.7 @ 1 |
| TME | YB15CKG01 | 13.65 | 1 | In Stock | | NKK SWITCHES | | 13.65 @ 1 |
 | swatee.com | YB15CKG01 | 14.15 | 1 | 11 | | NKK Switches | | 14.15 @ 1 |
| Newark | 11X0411 | 19.12 | 1 | In Stock | | NKK SWITCHES | | 19.12 @ 1 |
