- mpnYB15SKG01
- brandname: NKK Switches
- manufacturername: NKK Switches

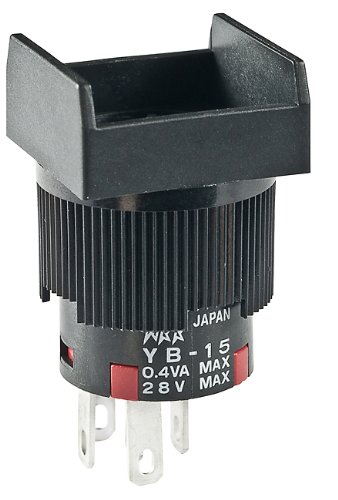

NKK Switches Part Number YB15SKG01
- Brand: NKK Switches
- PartNumber: YB15SKG01
- Manufacturer: NKK Switches
- Label: NKK Switches
Attributes
| Key | Value |
|---|
| AC contacts rating @R | 0.1A / 28V AC |
| Actuator Type | Plunger for Cap |
| Body colour | black |
| Body dimensions | 18x18x25.3mm |
| Body material | polyamide |
| Circuit | SPDT |
| Color - Actuator/Cap | - |
| Conform to the norm | CSA, |
| Contact material | phosphor bronze |
| Contact plating | gold-plated |
| Contacts configuration | SPDT |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| DC contacts rating @R | 0.1A / 28V DC |
| Electrical Life | 100,000 Cycles |
| Electrical life | 100000 cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | none |
| Illumination Type, Color | - |
| Illumination Voltage (N. | - |
| Ingress Protection | - |
| Key stroke | 3mm |
| Kind of material | fiber glass reinforced |
| Leads | 2,8mm connectors, |
| Manufacturer | NKK Switches |
| Manufacturer series | YB |
| Max. contact resistance: | 100m? |
| Mechanical durability | 1000000 cycles |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | NKK Switches |
| Min. insulation resista. | 200M? |
| Mounting | on panel, |
| Mounting hole diameter | ?16mm |
| Mounting Type | Panel Mount, Front |
| Number of positions | 2 |
| Operating Temperature | -25?C ~ 70?C |
| Operating temperature | -20...70?C |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Part Status | Active |
| Poles number | 1 |
| Stable positions number | 1 |
| Switch Function | On-Mom |
| Switching method | ON-(ON) |
| Termination Style | Solder, Quick Connect -. |
| Type | Standard |
| Type of switch | push-button |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 2107238 | 12.86 | 1 | In Stock | | nkk-switches | | 12.86 @ 1 |
| TME | YB15SKG01 | 13.17 | 1 | In Stock | | NKK SWITCHES | | 13.17 @ 1 |
 | Newark | 11X0692 | 19.12 | 1 | In Stock | | NKK SWITCHES | | 19.12 @ 1 |
