mpn:
brand:
manufacturer:
MPN:
Description:

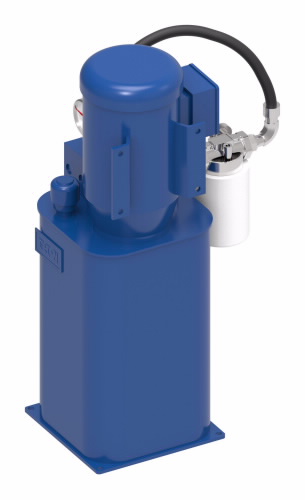

6764520 EATON | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Air bleed valve, Special features17 | Not required |
| Breather | Standard filler/breather |
| Circuit | Open Loop |
| Containment tray | Yes |
| Cooler | Full Flow Return Air/oil Fan assist with by-pass (40GPM max flow) |
| Displacement | 4.5 gallons per minute |
| Eccn | EAR99 |
| Frequency | 50 Hz |
| Hydraulic pump type | Vane |
| Icc2 | Vertical Packaged Systems |
| Installation position | Vertical |
| Level temperature switch | Level/Temperature Switch |
| Main port connections | SAE |
| Manifold stations | Two station parallel manifold |
| Model Code | PSSPA1005V010XX720XXXXXXB1XFXFTMP2XG/0B/2C/ |
| Model series | System-Pak |
| Motor power | 3 HP (horsepower) |
| Oil tank | 5 gallon (US) |
| Paint | Eaton Blue |
| Phase | 3-Phase |
| Pressure filter | No |
| Pressure gauge | 0-1500 PSI |
| Pressure max | 2500 psi |
| Product height | 30 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 17.9 |
| Product material | Cast Iron |
| Product trade name | PSSP Series |
| Product width | 14 |
| Pump control type | Standard control |
| Return filter | 0 gallons per minute |
| Sub brand | None |
| Valve size | DO3 |
| Voltage | 230 volt |
| Winding type | Standard |
