- mpn15-401-200-PSI
- brandname: NOSHOK
- manufacturername: NOSHOK

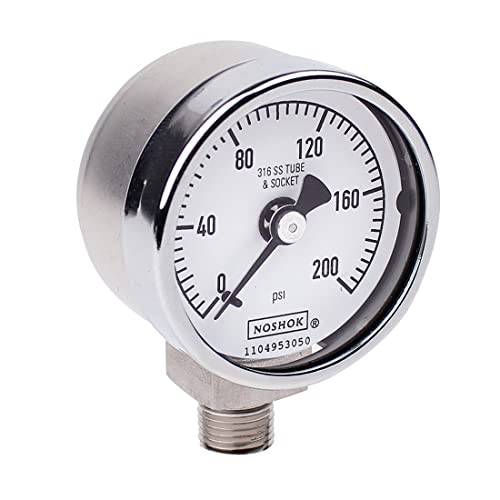

NOSHOK 400 Series All Stainless Steel Dry Dial Indicating Pressure Gauge with Bottom Mount, 1-1/2" Dial, +/-2.5% Accuracy, 0-200 psi Pressure Range


- Brand: NOSHOK
- PartNumber: 15-401-200-psi
- Model: 15-401-200-psi
- Size: 0-200 psi
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: NOSHOK, Inc.
- Label: NOSHOK, Inc.
Attributes
Key | Value |
---|
Accuracy | ?2.5%, 2.5%, 2.5 |
Ambient Temperature Ran. | -40 to 140?F, -40 to 140 |
Ammonia Refrigeration G. | Ammonia and refrigerati. |
Application | Chemical Processing, Oi. |
Basic Gauge Case Materi. | Stainless Steel |
Body Material | 304 Stainless Steel |
Case Type | All Stainless Steel (SS. |
Category | 400/500 Series All Stai. |
Connection | 1/8? Male NPT |
Connection Location | Bottom |
Connection Material | Stainless Steel |
Connection Size | 1/8 in, 1/8 |
Connection Type | NPT, National Pipe Thre. |
Cover Ring Material | Polished 304 Stainless . |
Dial Size (In.) | 1-1/2 in |
Dial/Display Size | Aluminum, White BACKGRO. |
Diameter | 1 1/2? |
Distribution Manifolds | NOSHOK`s Distribution M. |
Gauge Fill | Dry |
Gauge Lens Material | Instrument Glass |
Gauge Primary Range Uni. | psi |
Gauge Size | 1-1/2 |
Gross Weight | 0 lbs |
Inch/Metric | Inch |
Item | Pressure Gauge |
Lens/Display Material | Instrument Glass |
Material | 304 Stainless Steel wit. |
Measuring Element | 316 Stainless Steel ?C?. |
Media Temperature Range | -40 to 212?F, -40 to 212 |
Mount Type | Std |
Movement | Stainless Steel with Hi. |
Note | Ammonia gauges are avai. |
Operating Temperature | ?-40 to 100 ?C? |
Outer Scale Pressure Ra. | 0 to 200 psi |
Package Quantity | 1 |
Pointer | Black Finished Aluminum |
Pointer Material | Aluminum |
Pressure Range | 0 to 200, 0 to 200 psi |
Price: | $208.74 |
Refrigeration Gauges wi. | Refrigeration gauges wi. |
Related Items | 101-MFB, 100 Series 6,0. |
Scale Option | psi Single Scale |
SchemaID | 101737 |
Series | 400 Series, 400/500 |
Style | 15-401 |
Syndication | 1 |
Type | Pressure Gauge |
Uninstalled Options and. | Certificate of Cleaning. |
Unit | 1 |
Weight | .25 lbs |
