brand:
manufacturer:
Description:

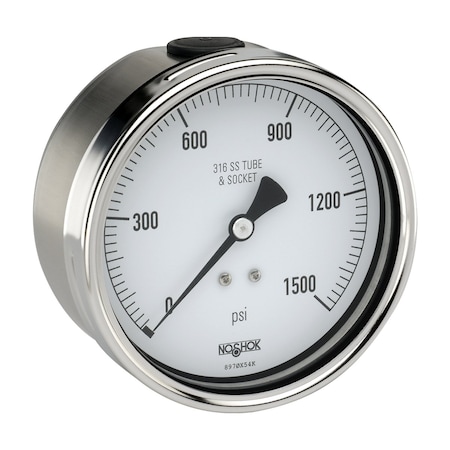

Corrosion-resistant fillable dry or liquid-filled gauge. Vacuum and compound ranges through 0 psi to 20,000 psi. 316 Stainless Steel wetted parts. Cleaning for Oxygen Service O2 is available only for dry or HL Halocarbon filled gauges.
Attributes
| Key | Value |
|---|---|
| Accuracy | 1.6% |
| Ambient Temperature Range (Glycerin Fill) | -4 to 140?F |
| Ambient Temperature Range (Special Fill) | -40 to 140?F |
| Application | Chemical Processing, Oil Field & Offshore, Paper Mills, Agriculture Plants, Marine, Water & Wastewater |
| Basic Gauge Case Material | Stainless Steel |
| Connection Location | Bottom |
| Connection Material | Stainless Steel |
| Connection Size | 1/4 in |
| Connection Type | NPT |
| Cover Ring Material | Polished 304 Stainless Steel |
| Dial Size (In.) | 2-1/2 in |
| Gauge Filled With | Glycerin |
| Gauge Lens Material | Trogamide |
| Gauge Primary Range Units | psi |
| Inch/Metric | Inch |
| Item | Pressure Gauge |
| Liquid Filled | Yes |
| Material | 304 Stainless Steel |
| Measuring Element | 316 Stainless Steel C-Type Bourdon Tube |
| Media Temperature Range (Glycerin Fill) | -40 to 212?F |
| Media Temperature Range (Special Fill) | -40 to 212?F |
| Pointer Material | Aluminum |
| Pressure Range | 0 to 60 psi |
| Series | 400/500 |
