Description:
40-510-30-vac/bar NOSHOK | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key | Value |
|---|---|
| Accuracy, Syndication, Unit | 1 |
| Ambient Temperature Range (Glycerin Fill) | -4 to 140 |
| Ambient Temperature Range (Special Fill) | -40 to 140 |
| Ammonia Refrigeration Gauges | Ammonia and refrigeration gauges with dials reading in both pressure and temperature are available in 400/500 Series 2-1/2" and 4" sizes |
| Application | Chemical processingOil field & offshorePaper millsAgriculture plantsMarineWater & wastewater |
| Case Type | Stainless Steel (SS) Case, Liquid Filled, Back Connection |
| Category | 400/500 Series 4 in. Gauge Size All Stainless Steel Dry and Liquid Filled Pressure Gauges |
| Connection Material | 316 Stainless Steel |
| Connection Size | 1/2 |
| Connection Type | National Pipe Thread (NPT) |
| Cover Ring Material | Polished 304 Stainless Steel |
| Dial/Display Size | Aluminum, White BACKGROUND with Black Scale. Ultraviolet (UV) Resistant. |
| Distribution Manifolds | NOSHOK`s Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths. |
| Fill Liquid | Glycerin |
| Gauge Size | 4 |
| Lens/Display Material | Instrument Glass |
| Material | Polished 304 Stainless Steel with Safety Relief Plug |
| Measuring Element | 316 Stainless Steel C-Type Bourdon Tube |
| Media Temperature Range (Glycerin Fill), Media Temperature Range (Special Fill) | -40 to 212 |
| Movement | All Stainless Steel with Internal Zero Stop and Highly Polished Bearing Surfaces |
| Note | On 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, and 60-510 models with 20,000 psi, the accuracy is 1.5% or 1.6%.Ammonia gauges are available in these ranges. To order, add "- AMMONIA" at the end of the part number. |
| Pointer | Balanced Aluminum, Black Finish |
| Pressure Range | 0 to 30 |
| Price: | $251.54 |
| Refrigeration Gauges with Dials Reading in Pressure and Temperature | Refrigeration gauges with dials reading in pressure and temperature are available in NOSHOK 300, 400 and 500 Series Pressure Gauges for R-12 and R-22 |
| Scale Option | bar Scale |
| SchemaID | 101737 |

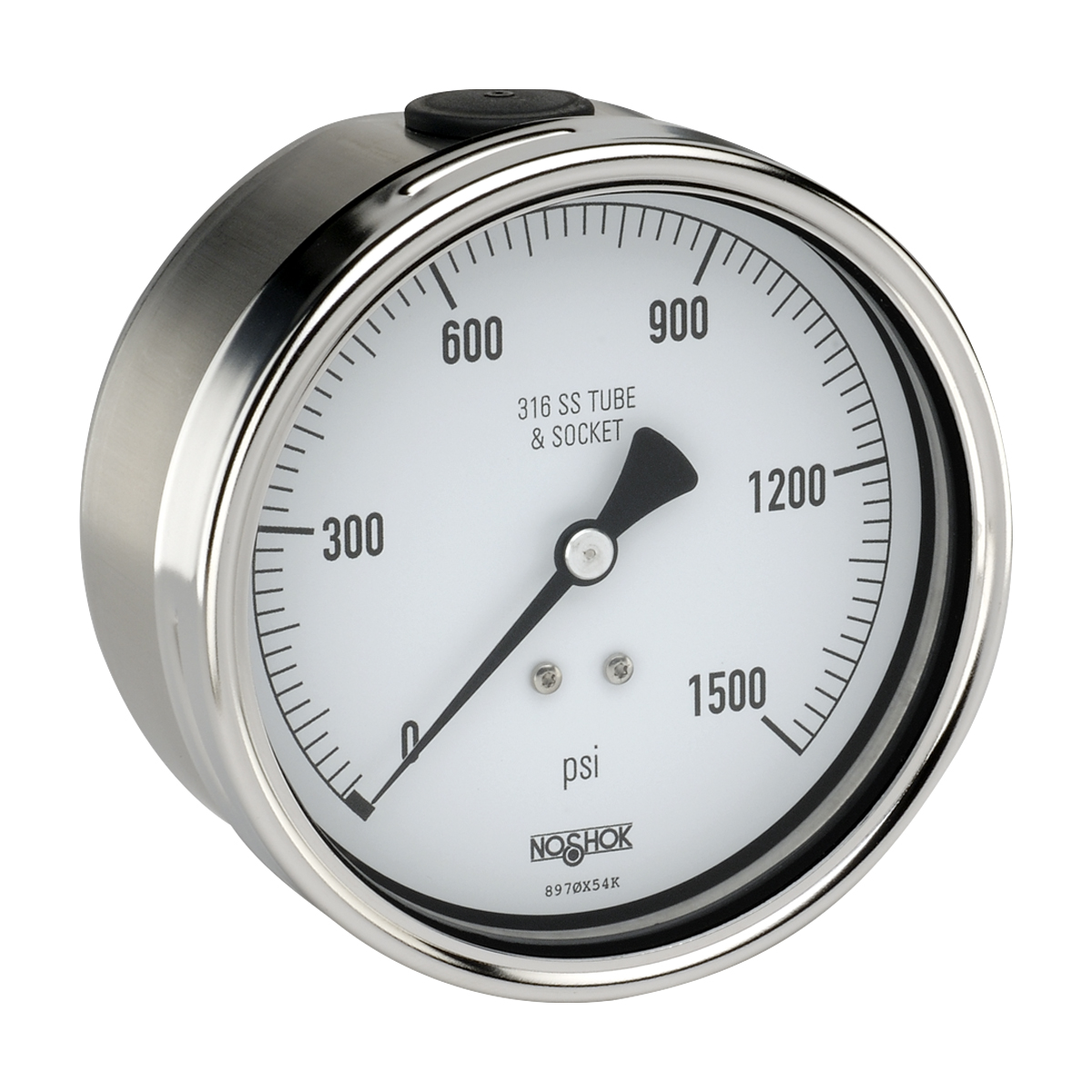

| Type | Pressure Gauge |
| Uninstalled Options and Accessories | Certificate of Cleaning (COCL)Certificate of Conformance (COC) |
