45-740-600-psi/kPa NOSHOK | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | 0.5 |
| Ambient Temperature Range | -40 to 150 |
| Application | Injection molding machinesLaboratory & test equipmentPower generationOil field & offshoreUtilitiesWater & wastewater |
| Assembly Options | NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution. |
| Bayonet Ring Material | Threaded Black PBT |
| Case Type | Stainless Steel (SS), Dry, Bottom Connection |

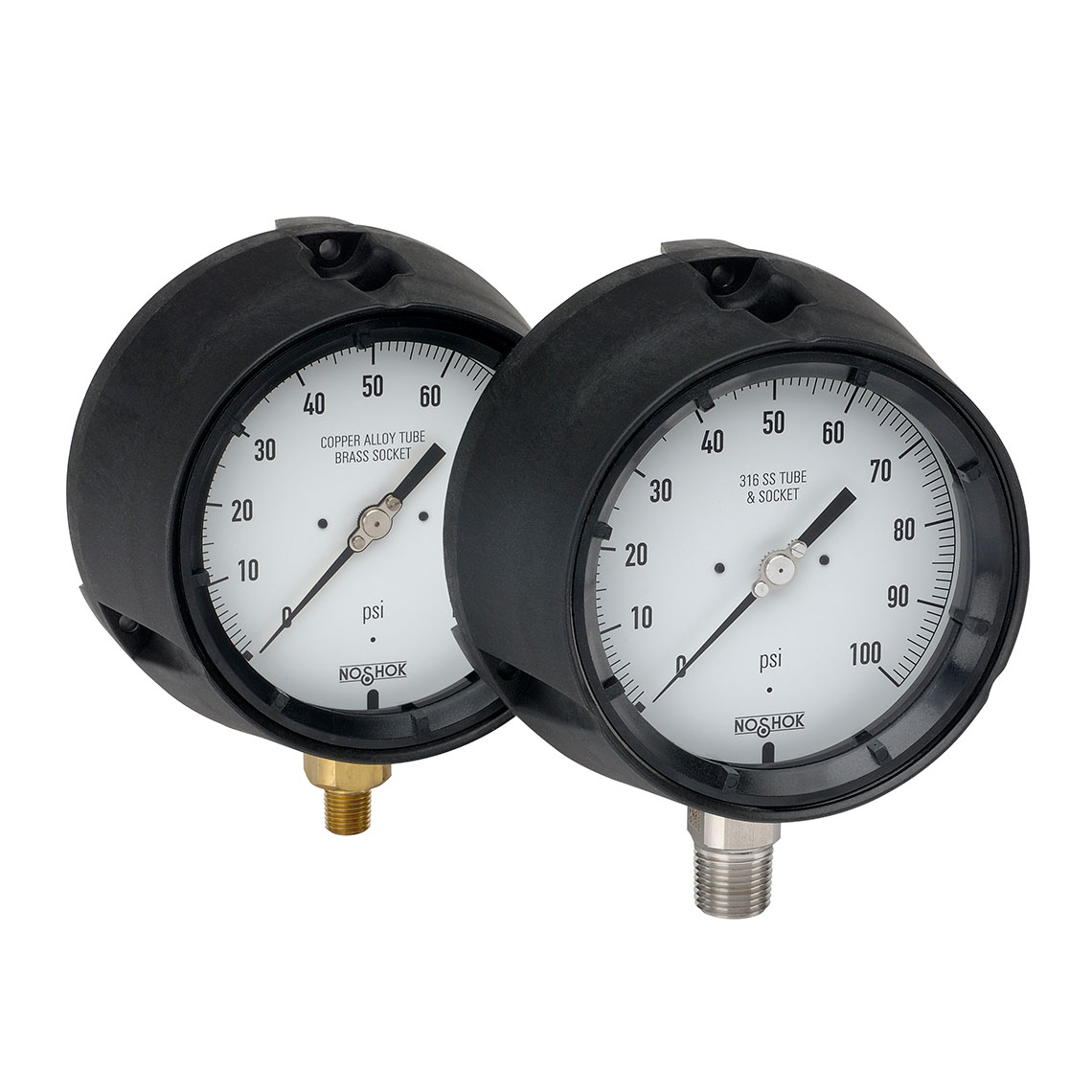

| Category | 600/700 Series Process Dry and Liquid Filled Pressure Gauges |
| Connection Material | 316 Stainless Steel |
| Connection Type | National Pipe Thread (NPT) |
| Dial/Display Size | Aluminum, white background with black scale. UV resistant. |
| Distribution Manifolds | NOSHOK`s Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths. |
| Gauge Size | 1/4|1/2 |
| Lens/Display Material | Acrylic |
| Material | Turret Style Black Polypropylene Case Solid Front, Safety Case with Blow-Out Back |
| Measuring Element | 316 Stainless Steel C-Type Bourdon Tube |
| Media Temperature Range | -40 to 212 |
| Movement | Stainless steel with highly polished bearing surfaces. An internal zero stop is standard. |
| Pointer | Balanced Micro-Adjustable Aluminum, Black Finish |
| Pressure Range | 0 to 600 |
| Price: | $215.34 |
| Reid Vapor Test Gauges | Configuration includes a handle, special dial and special pressure portConfiguration includes a handle, special dial and special pressure port |
| Related Items | 204-MFS, 200 Series 1/2 in. Connection Size Multiport Needle Valve with Hard Seat|2070-MFS, 2070 Series 1/2 in. Connection Size Block and Bleed 2 Needle Valve with Hard Seat|404-MFS, 400 Series 1/2 in. Connection Size Standard Needle Valve with Hard Seat |
| Scale Option | psi/kPa Scale |
| SchemaID | 101737 |
| Series | 700 |
| Short Term/Intermittent Temperature | 500 |
| Syndication, Unit | 1 |
| Type | Pressure Gauge |
| Uninstalled Options and Accessories | Certificate of Cleaning (COCL)Certificate of Conformance (COC) |
| Working Pressure Limitations | Dynamic PressureThe working pressure should be limited to 60% of the dial range.Static PressureThe working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range. |
