Description:
50-310-120-0/200-F/C NOSHOK | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| 1/2" NPT Adjustable Union (AU) | Can be used to reposition the dial face for better viewingAlso helpful when installing a thermometer where space is limited |
| Accuracy Grade | A |
| Accuracy Standard | American Society of Mechanical Engineers (ASME) B40.3 |
| Accuracy, Syndication, Unit | 1 |
| Application | Industrial processPetrochemicalFood & beverage processingCommercialWastewater |
| Bimetal Coil | Silicone coated helix coil on ranges below 500 F for vibration dampening, maximum heat transfer and response time |
| Case Type | Back Connection |
| Category | 300 Series Industrial Type Bimetal Thermometers with External Reset, Sanitary Tri-Clamp |
| Certified Calibration | Certified calibration provides the user with a serial numbered thermometer along with a calibration sheet against a primary temperature standardTraceable to the National Institute of Standards and Technology |
| Connection Type | National Pipe Thread (NPT) |
| Dial | Anodized Aluminum with large black numbers and graduations |
| Dial Size | 5 |
| Glow Dial (GD) | Available only on 50-310 and 50-320 model allows up close daylight and/or distant night time viewing 5" Adjustable angle or back connectReflective PointerTwo reflective clips included to indicate custom minimum and maximum limits |
| Hermetic Seal | Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof |
| Lens/Display Material | Instrument Glass |
| Limits Over Temperature at 100 Percentage | Up to 250 |
| Limits Over Temperature at 50 Percentage | 250 to 500 |
| Limits Over Temperature at Continuous Use Up to 800 F, Limits Over Temperature at Intermittent Use Over 800 F | 550 to 1,000 |
| Material, Wetted Parts Material | 304 Stainless Steel |
| Min and Max Indicating Pointers (MIP2) | The MIP2 allows you to view your minimum and maximum temperatures for visual clarification of safe operationAvailable only on 30-310 and 50-310 model |
| Min or Max Indicating Pointer | The MIP allows you to view your minimum or maximum temperatures for visual clarification of safe operationAvailable only on 30-310 and 50-310 models (MIP) |
| Mounting Flanges - Bimetal Thermometers | Various sizes and types of mounting flanges are available |
| Note | Thermowells are recommended for pressure, corrosive fluids and high velocity applications.All 316 Stainless Steel construction (case, bezel, wetted parts) is available. Please consult factory. |
| Operating Temperature [Max] | 200 |
| Operating Temperature [Min], Type of Handling Units, Type of Packages | 0 |
| Optional Wetted Parts Material | 316 Stainless Steel |
| Package Type | Each |
| Pointer | Aluminum, Black Finished |
| Price: | $177.14 |
| Recalibrator | External Reset |
| Related Items | 50-120-304-SS, 12 in. Stem Length Thermowell|50-120-316-SS, 12 in. Stem Length Thermowell|75-120-304-SS, 12 in. Stem Length Thermowell |
| SchemaID | 102551 |
| Series | 300 |
| Special Dials - Bimetal Thermometers | Special ranges and dials with company names, company logos, part numbers, telephone numbers, or almost any custom layout is available |
| Stem Diameter | 0.250 |
| Stem Lengths | 12 |
| Stem Types | The 304 Series Stainless Steel stem is welded at the tip and case for hermetic seal1/4" (6.35 mm) diameter is standard for lengths up to 24" (609 mm)3/8" diameter, sharp tip options and optional 316SS wetted parts are also available |
| Temperature Scale | Dual |
| Thermowells | Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument. |

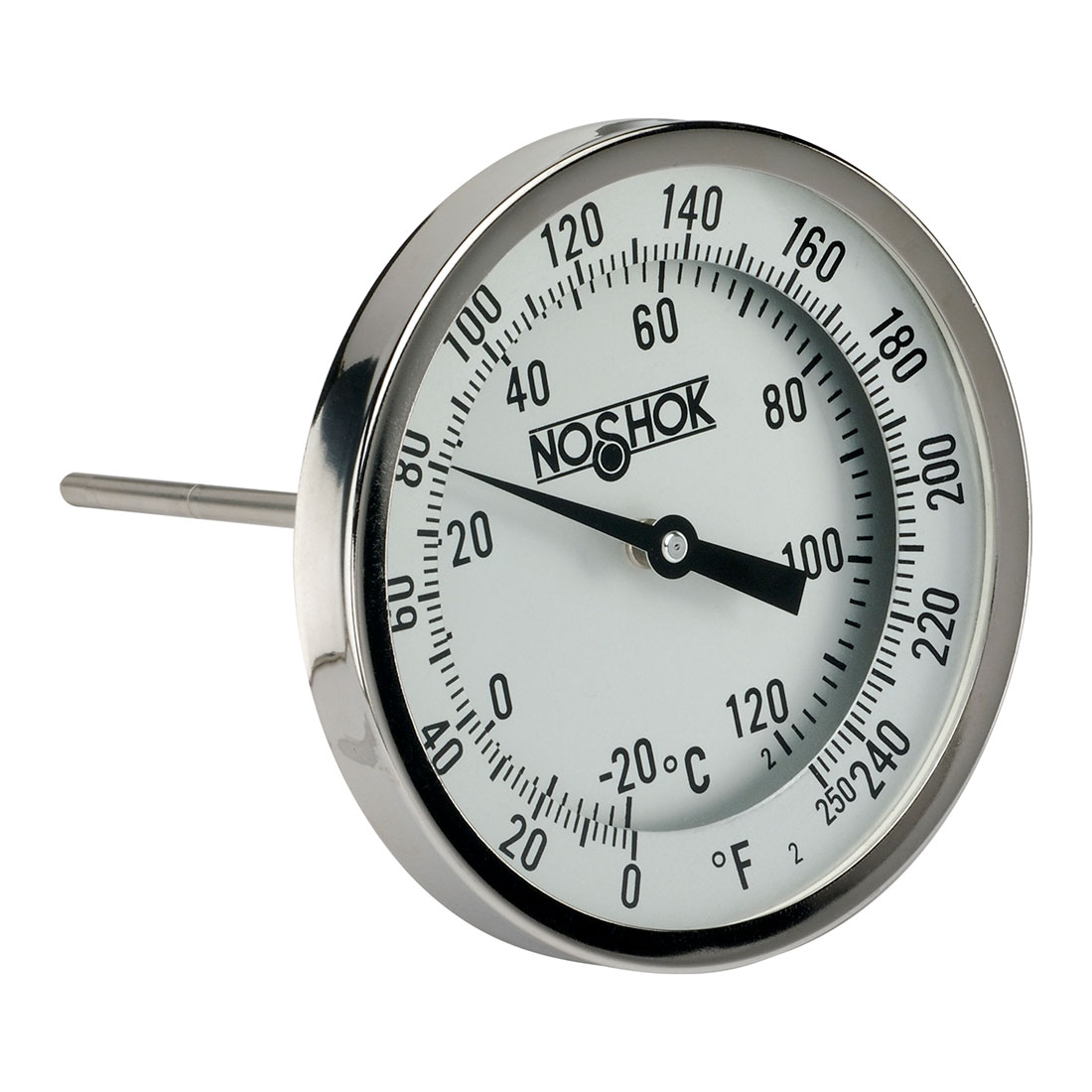

| Type | Bimetal Thermometer |
