Description:
50-320-025--40/160-F NOSHOK | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key | Value |
|---|---|
| 1/2" NPT Adjustable Union (AU) | Can be used to reposition the dial face for better viewingAlso helpful when installing a thermometer where space is limited |
| Accuracy | 1 |
| Accuracy Grade | A |
| Accuracy Standard | American Society of Mechanical Engineers (ASME) B40.3 |
| Adjustable Angle Form | All Stainless Steel brackets with screws that loosen to allow 360 rotation of head and 180 adjustment of stem position. |
| Application | Industrial processPetrochemicalFood & beverage processingCommercialWastewater |
| Bimetal Coil | Silicone coated helix coil on ranges below 500 F for vibration dampening, maximum heat transfer and response time |
| Case Type | Adjustable Angle Connection |
| Category | 300 Series Industrial Type Bimetal Thermometers with External Reset, Sanitary Tri-Clamp |
| Certified Calibration | Certified calibration provides the user with a serial numbered thermometer along with a calibration sheet against a primary temperature standardTraceable to the National Institute of Standards and Technology |
| Connection Type | National Pipe Thread (NPT) |
| Dial | Anodized Aluminum with large black numbers and graduations |
| Dial Size | 5 |
| Glow Dial (GD) | Available only on 50-310 and 50-320 model allows up close daylight and/or distant night time viewing 5" Adjustable angle or back connectReflective PointerTwo reflective clips included to indicate custom minimum and maximum limits |
| Hermetic Seal | Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof |
| Lens/Display Material | Instrument Glass |
| Limits Over Temperature at 100 Percentage | Up to 250 |
| Limits Over Temperature at 50 Percentage | 250 to 500 |
| Limits Over Temperature at Continuous Use Up to 800 F | 550 to 1,000 |
| Limits Over Temperature at Intermittent Use Over 800 F | 550 to 1,000 |
| Material | 304 Stainless Steel |
| Min and Max Indicating Pointers (MIP2) | The MIP2 allows you to view your minimum and maximum temperatures for visual clarification of safe operationAvailable only on 30-310 and 50-310 model |
| Min or Max Indicating Pointer | The MIP allows you to view your minimum or maximum temperatures for visual clarification of safe operationAvailable only on 30-310 and 50-310 models (MIP) |
| Mounting Flanges - Bimetal Thermometers | Various sizes and types of mounting flanges are available |
| Note | Thermowells are recommended for pressure, corrosive fluids and high velocity applications.All 316 Stainless Steel construction (case, bezel, wetted parts) is available. Please consult factory. Available for 3" and 5" dial sizes only. |
| Operating Temperature [Max] | 160 |
| Operating Temperature [Min] | -40 |
| Optional Wetted Parts Material | 316 Stainless Steel |
| Package Type | Each |
| Pointer | Aluminum, Black Finished |
| Price: | $246.52 |
| Recalibrator | External Reset |
| Related Items | 50-025-304-SS, 2-1/2 in. Stem Length Thermowell|50-025-316-SS, 2-1/2 in. Stem Length Thermowell|75-025-304-SS, 2-1/2 in. Stem Length Thermowell|75-025-316-SS, 2-1/2 in. Stem Length Thermowell |
| SchemaID | 102551 |
| Series | 300 |
| Special Dials - Bimetal Thermometers | Special ranges and dials with company names, company logos, part numbers, telephone numbers, or almost any custom layout is available |
| Stem Diameter | 0.250 |
| Stem Lengths | 2.5 |
| Stem Types | The 304 Series Stainless Steel stem is welded at the tip and case for hermetic seal1/4" (6.35 mm) diameter is standard for lengths up to 24" (609 mm)3/8" diameter, sharp tip options and optional 316SS wetted parts are also available |
| Syndication | 1 |
| Temperature Scale | Single |
| Thermowells | Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument. |

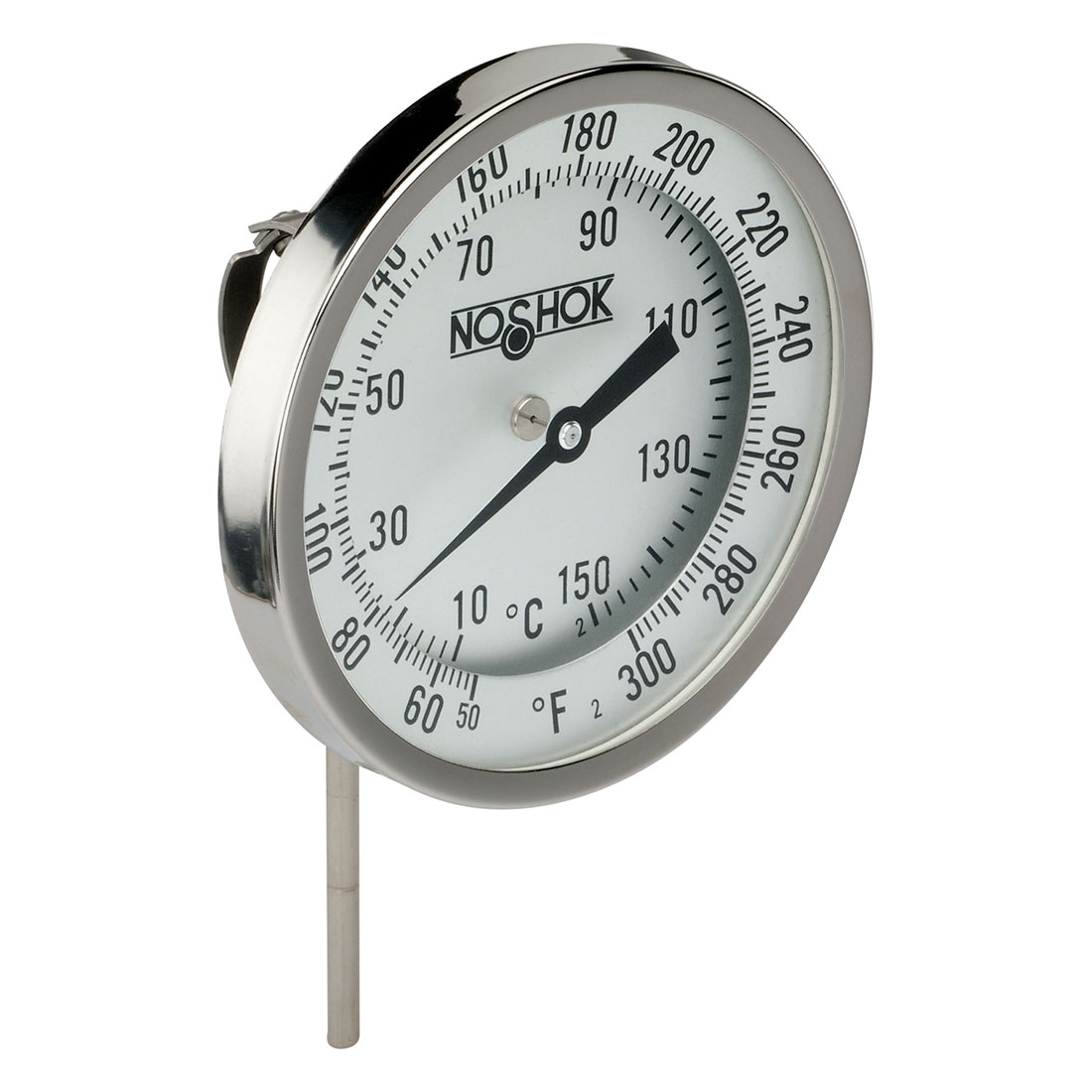

| Type | Bimetal Thermometer |
| Type of Handling Units | 0 |
| Type of Packages | 0 |
| Unit | 1 |
| Wetted Parts Material | 304 Stainless Steel |
