Description:

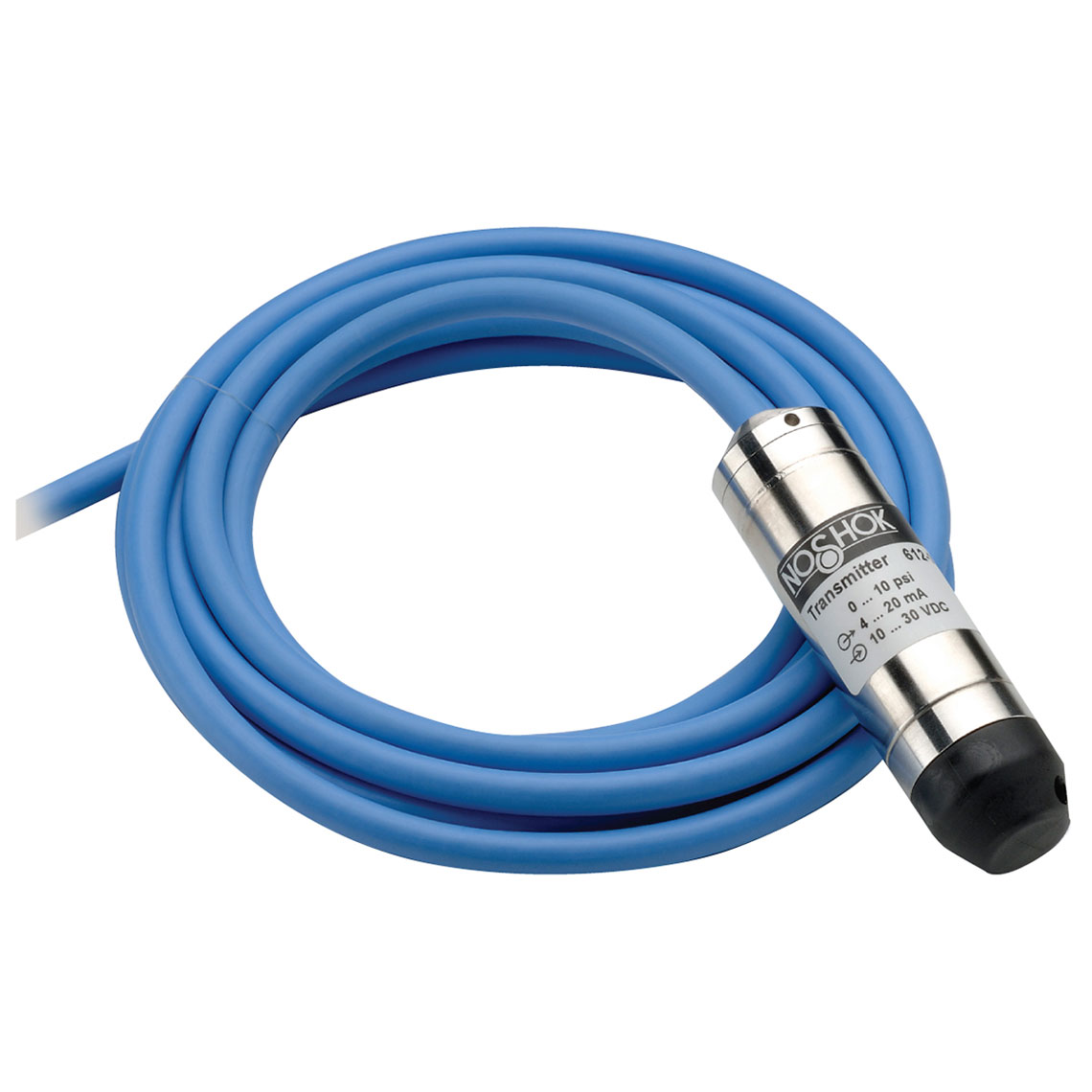

612-30-1-1-N-100 NOSHOK | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | 0.25 |
| Additional Information | CE compliant to suppress RFI, EMI and ESDIdeal for applications including irrigation, tank monitoring, water & wastewater and well head measurement |
| Application | IrrigationTank monitoringWater & wastewaterWell head measurement |
| Approximate Weight | 7 |
| Burst Pressure | 4 Times Range |
| Cable Length, Shock According to International Electrotechnical Commission (IEC) 60068 | 100 |
| Category | 612 Series Submersible Level Transmitters |
| Compensated Temperature Range | 32 to 122 |
| Connection Material, Housing material | 316 Stainless Steel |
| Connection Type | Nosecone |
| Degree of Protection | Ingress Protection (IP68) |
| Electrical Connection | Standard polyurethane (PUR) Cable, FEP Cable (38) |
| Electrical Protection | Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J |
| Inch/Metric | Inch |
| Industry Standards/Certifications | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Request for Information (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
| Load Limitations | <= (VPower-10)/0.020 Amp for 4 mA to 20 mA>= 10,000 for 0 Vdc to 10 Vdc, 3-wire>= 5,000 for 0 Vdc to 5 Vdc, 3-wire |
| Measuring Element | Cap: Polyamide, 316 stainless steel with weighted noseconeCable: Polyurethane, optional FEP or PVC with double water block |
| Media Temperature Range | 14 to 122 |
| Note for Accuracy | Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors. |
| Note for Compensated Temperature Range | Effect 0.01%/F for zero and span |
| Operating Temperature [Max] | 80 |
| Operating Temperature [Min] | -30 |
| Options and Accessories | Cable Clamp (CBC) Cable Junction Box (NEMA 4X) (JB)Desiccant Cartridge (DC)Filter Element (FE)Lightning Protection (LP) (Only available with PUR cable)PT100 RTD1 (PT1) (Only available with PUR cable) |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Power Requirement | 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire)14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire) |
| Pressure Range | 0 to 30 |
| Price: | $1,515.00 |
| Proof Pressure | 2 Times Range |
| Related Items | 612-CABLE-CLAMP, Submersible Cable Clamps|612-FILTER-ELEMENT, Submersible Filter Elements |
| Response Time | <=1 |
| SchemaID | 106379 |
| Series | 612 |
| Service Life | > 100,000,000 load cycles |
| Stability | <= 0.2% full scale for 1 year, non-accumulating |
| Style | Level Transmitter |
| Syndication, Unit | 1 |
| Type | Submersible Level Transmitter |
| Vibration According to International Electrotechnical Commission (IEC) 60068-2-6 | 15 |
