| Ambient Temp. Range, Sensor Measurement Temp. Range | -40 to 185?F |
| Connection Type | MNPT |
| Construction, Seal Material | 316 Stainless Steel |
| Description/Special Features | Reverse Polarity, Over-Voltage and Short Circuit Protection; Burnout Protected From 3.3 to 23 mA |
| Dia. | 6 mm |
| Electrical Connection | DIN EN 175301-803 Form A |
| IP Rating | IP65 |

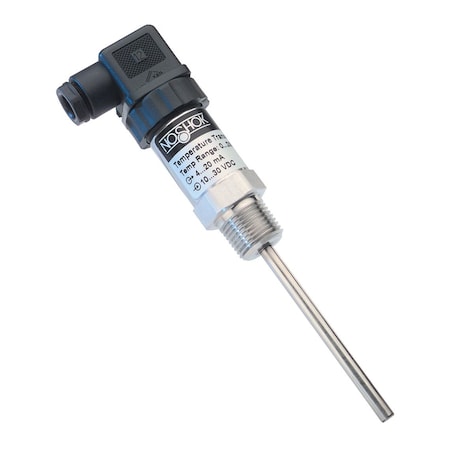

| Item | Temperature Transmitter |
| Output | 4 to 20 mA |
| Pressure Rating | 725 psi |
| Probe Temp. Measuring Element | Class B per Norm European Standards (EN) 60751 |
| Process Connection | 1/2" NPT |
| Sensor Length | 12 in |
| Series | 800 |
| Standard Temperature Ranges | -40 to 120??F; 50 to 400??F |
| Standards | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:1997/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
| Temp. Accuracy | Class B + (+/-0.5% BFSL) |
| Temp. Range | 0 to 140?F |
| Use | Water Systems, Storage Tanks, Industrial Machinery and Machine Tools, HVAC Systems, Refrigeration Systems |
| Voltage Range | 10 to 30V DC (4 to 20 mA, 2-Wire; 0 to 5 Vdc, 3-Wire; 1 to 5 Vdc, 3-Wire); 14 to 30V DC (0 to 10 Vdc, 3-Wire) |
