Category | Connectors, Interconnects |
Color | Blue |
Contact Finish, Plating Material | Electro-Tin |
Contact Material, Terminal Material | Brass |

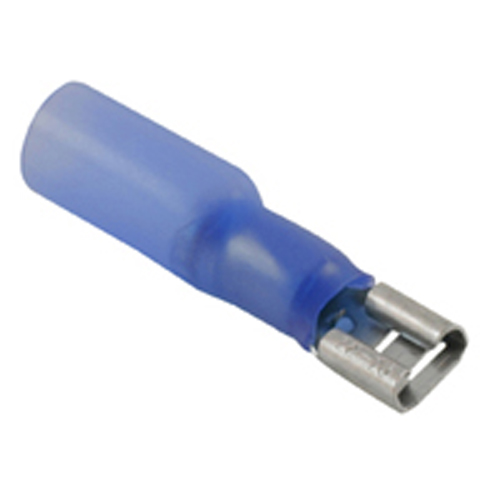

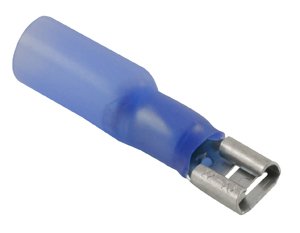

Description | HEAT SHRINK INS FEM DISC |
Detailed Description | 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Heat Shrink |
Digi-Key Part Number | 2368-76-HIFD16-ND |
Family Series | NTE Electronics Terminals, Solderless Terminal Series |
Features, Insulation Diameter | - |
Gender | Female |
Gross Weight | 0.05 lbs |
Insulated | Insulated |
Insulation | Non-Mating End Heat Shrink |
Insulation Material | Heat Shrinkable Tube |
Item Number, Manufacturer Part Number, Manufacturer Product Number, Part Number | 76-HIFD16 |
Length - Overall | 1.417" (36.00mm) |
Manufacturer | NTE Electronics |
Manufacturer, Mfr | NTE Electronics, Inc |
Max Temp | 221 ?F |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0.0624 lbs |
Package | Bag |
Package Quantity | 10 |
Product Series | SOLDERLESS TERMINAL |
Product Status | Active |
Product Type | Crimp Terminals Lugs & Wire Nuts |
RoHS Compliant | Yes |
Series | NEMA |
Tab Length | 0.311" (7.90mm) |
Tab Size | 0.25 x 0.032 " |
Tab Thickness | 0.032" (0.81mm) |
Tab Width | 0.250" (6.35mm) |
Terminal Type | Disconnect - Female, Standard |
Termination | Crimp |
Volts | 300 V |
Wire Gauge | 14-16 AWG |
Wire Size | 16-14 AWG |
Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
