Description:

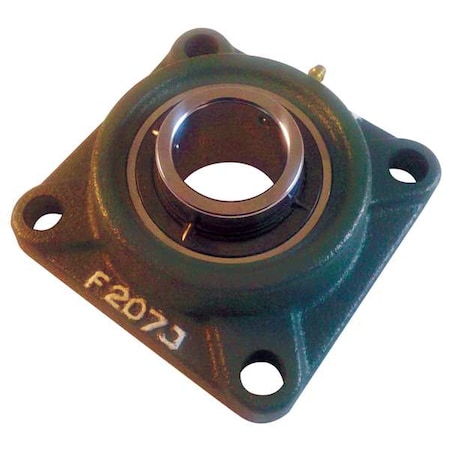

4 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/8 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC207-106D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3.625 in, Number of Mount Holes 4
Attributes
| Key | Value |
|---|---|
| Back Side to Center Width | 0.748 in |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | 52100 Chrome Steel |
| Bearing Insert Type | Ball |
| Bearing Lubrication | Shell Alvania #3 or NLGI #3 Equivalent |
| Bolt Hole Center-to-Center | 3 5/8 in |
| Bolt Size | 7/16 in |
| Bore Dia. | 1 3/8 in |
| Bore Diameter | 1 3/8 in |
| Finish | Painted |
| Housing Material | Cast Iron |
| Inner Ring Width | 4.6 mm |
| Item | 4 Bolt Flange Bearing |
| Mount Hole Center-to-Center Height | 3.625 in |
| Mount Hole Center-to-Center Length | 3.625 in |
| Mount Hole Size | 0.551 in |
| Mounting Bolt Size | 1/2 in |
| Overall Height | 1 3/4 in |
| Overall Length | 4 19/32 in |
| Overall Width | 4 19/32 in |
| Series | Standard Duty |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 3,440 lb |
| Temp. Range | -20 Degrees to 250 Degrees F |
