NTN NJ308EG1C3

B017UJTTRI

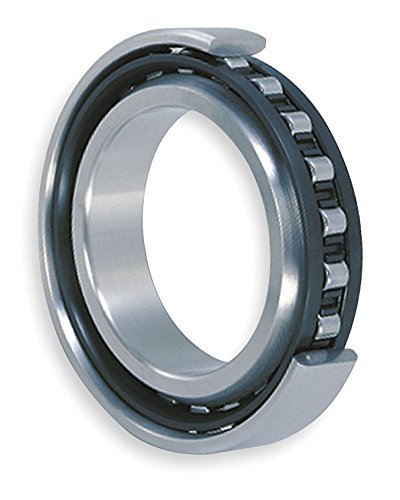

NTN NJ308EG1C3 , CYLINDRICAL ROLLER BRG , 4547359490947 UPC

NTN NJ308EG1C3 , CYLINDRICAL ROLLER BRG , 4547359490947 UPCzoom

Attributes

Key Value
bearing material:Hardened Alloy Steel
Bore Dia.40 mm
Bore Diameter40 mm
Bore Diameter Tolerance+0/-0.012 mm
bore type:Straight
Cage MaterialMachined Brass
cage material:High Strength Machined .
closure type:Open
Dynamic Load Capacity (.18,658 lb
dynamic load capacity:83000 N
Fillet Radii (mm)1.5 mm / 1.5 mm
fillet radius:1.5 mm
finish/coating:Uncoated
Housing Fillet Radius1.5 mm
Inner Ring Outside Dia..52 mm
Inner Ring Outside Diam.48 mm
internal clearance:C3
ItemCylindrical Roller Bear.
maximum rpm:8500 rpm
number of rows:1
operating temperature r.-40 to 120
Outer Ring Inside Diame.82 mm
Outside Dia.90 mm
Outside Dia. Tolerance+0/-0.013mm
Outside Diameter90 mm
Outside Diameter Tolera.+0/-0.015 mm
Overall Width23 mm
precision rating:ISO Class 0
Raceway Ring ShapeCylindrical Roller
Retaining Ring DiameterNot Applicable
Roller MaterialSteel
Rolling Element MaterialSteel
Shaft Fillet Radius1.5 mm
Shoulder Height (mm)57.6 mm
Static Load Capacity (L.18,321 lb
static load capacity:81500 N
Temp. Range (F)-13 Degrees to 250 Deg.
Tolerance+0/-0.012mm
Width23 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comNJ308EG1C3129.552In StockNTN1.0129.55 @ 2
thumbzoomZoroG6975604137.991In Stock13Ntn1.5137.99 @ 1
thumbzoomsustainablesupply.comC2908647201.411In StockNTN1.5201.41 @ 1
Grainger4ZXT8209.251In Stock13NTN209.25 @ 1
thumbzoommotionindustries.com04736735216.511In StockNTN216.51 @ 1
thumbzoomMisumi USANJ308EG1C3226.31In StockNTN226.3 @ 1
thumbzoomRaptor SuppliesAE2YEM286.5332341In StockNTN286.533234 @ 1
