Description:

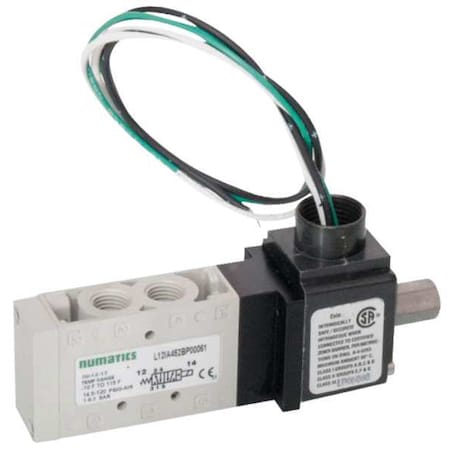

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/4 in, Max. CFM - Valves 79 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Body Style Body Ported, Pilot Port Size 1/4 in NPT, Coefficient of Volume 1.7, Hardwired Electrical Connections, Shifting Technology Spool & Sleeve, Power Consumption 3.5 W, Ambient Temp. Range -10 Degrees to 115 Degrees F
Attributes
| Key ^ | Value |
|---|---|
| Actuator/Return | Solenoid/Spring |
| Air Valve Type | 4-Way, 2-Position |
| Ambient Temp. Range | -10 Degrees to 115 Degrees F |
| Body Style | Body Ported |
| CFM | 79 |
| Coefficient of Volume | 1.7 |
| Electrical Connections | Hardwired |
| Item | Solenoid Air Control Valve |
| Max. CFM - Valves | 79.0 |
| NEMA Classification | NEMA 4 |
| Operational Pressure Range | 0 to 150 psi |
| Overall Height | 3 in |
| Overall Length | 6 1/4 in |
| Overall Width | 1 1/2 in |
| Pilot Port Size | 1/4 in NPT |
| Pipe Size | 1/4 in |
| Power Consumption | 3.5 W |
| Shifting Technology | Spool & Sleeve |
| Standards | CE, CSA, Intrinsically Safe, UL |
| Vacuum Range | 0 to 28" Hg |
| Valve Actuator / Return | Solenoid / Spring |
| Valve Vacuum Range | 0 to 28 in Hg |
| Valve Ways and Positions | 4-Way/2-Position |
| Voltage | 24V DC |
