Attributes
| Key ^ | Value |
|---|---|
| Brand | NXP |
| Channel Type | Channel Type |
| Configuration | Configuration |
| Dimensions | 3 x 1.4 x 1mm |
| Height | 1mm |
| Idss Drain-Source Cut-off Current | 20 ? 100mA |
| Length | 3mm |
| Maximum Drain Gate Voltage | 40V |
| Maximum Drain Source Resistance | 40 ? |
| Maximum Drain Source Voltage | 40 V |
| Maximum Gate Source Voltage | Maximum Gate Source Voltage |
| Maximum Operating Temperature | +150 ?C |
| Minimum Operating Temperature | -65 ?C |
| Mounting Type | Surface Mount |

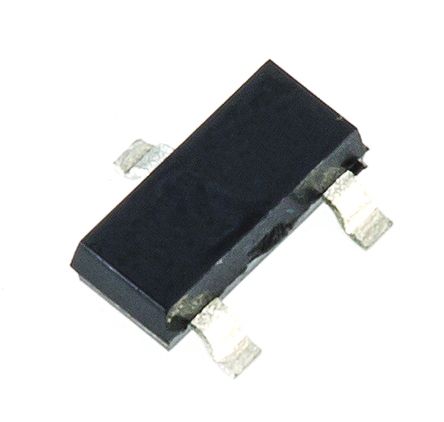

| Package Type | SOT-23 (TO-236AB) |
| Pin Count | 3 |
| Stock | Stock |
| Transistor Configuration | Single |
| Width | 1.4mm |
