| Bearing Type, Flange Type | Flanged |
| Bore Diameter, Inside Diameter | 3/16 in |
| Country of Origin (subject to change) | United States |
| Flange Diameter | 0.375 in |
| Flange Thickness | 0.031 in |

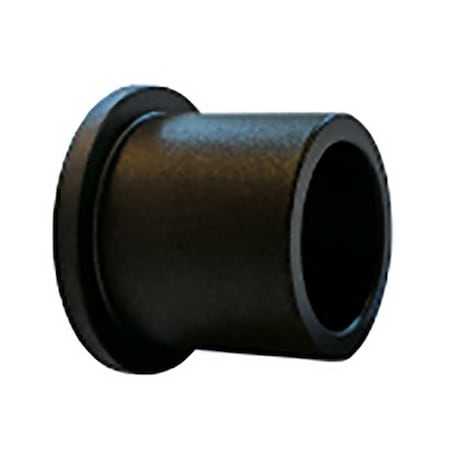

| Item | Flanged Sleeve Bearing |
| Material Group | Plastic |
| Maximum PV | 25,000 lb/sq in-fpm |
| Maximum Temperature | 500 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Number of Pieces | 1 |
| Outside Diameter | 1/4 in |
| Overall Length | 1/2 in |
| Plain Bearing Material | PEEK |
| Standards | Reach Certified, RoHS Certified |
| System of Measurement | Inch |
| Temperature Range | -40 Degrees F to 500 Degrees F |
