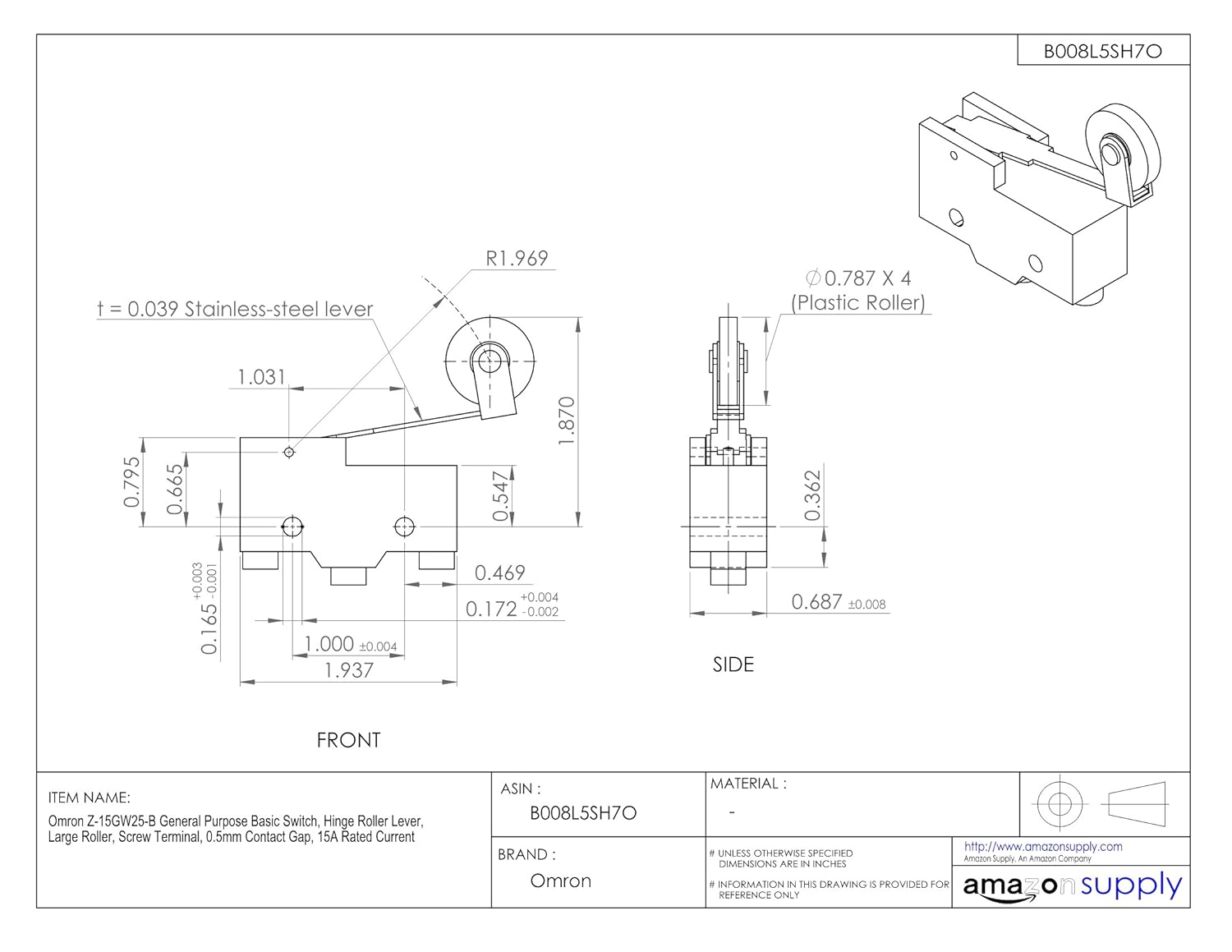

Omron Z-15GW25-B

Omron Z-Series General Purpose Snap switch having 1 NO - 1 NC contacts performs switching operation by 0.98 N force with the input voltage as well as current rating of 125 - 250 VAC and 15 A respectively. Brand Name|Omron#MFR Part Number|Z15GW25B#UNSPSC|39122243#Item|Snap Switch#Type|General Purpose, Standard#Voltage Rating|125 - 250 VAC#Amperage Rating|15 A#Operating Force|0.98 N#Release Force|0.21 N#Contact Configuration|1 NO - 1 NC#Actuator Type|Hinge Roller Lever (Large Roller)#Contact Form|SPDT#Travel|4 mm Over Travel, 1.6 mm Movement Differential#Terminal Type|Screw#Electrical Connection|Wire#Mounting Type|Side#Body Material|Silver Contact, Stainless Steel Plunger#Temperature Range|-25 to 80 deg C#Enclosure Type|IP00#Dimensions|49.2 mm Length X 17.45 mm Width#Standard/Approvals|UL Listed, CE Certified, CSA Certified#Application|Industry Including Lifts, Garages, Production Lines, Machine Tools, Automotive, Security, Domestic Goods and Vending Machines
