Description:

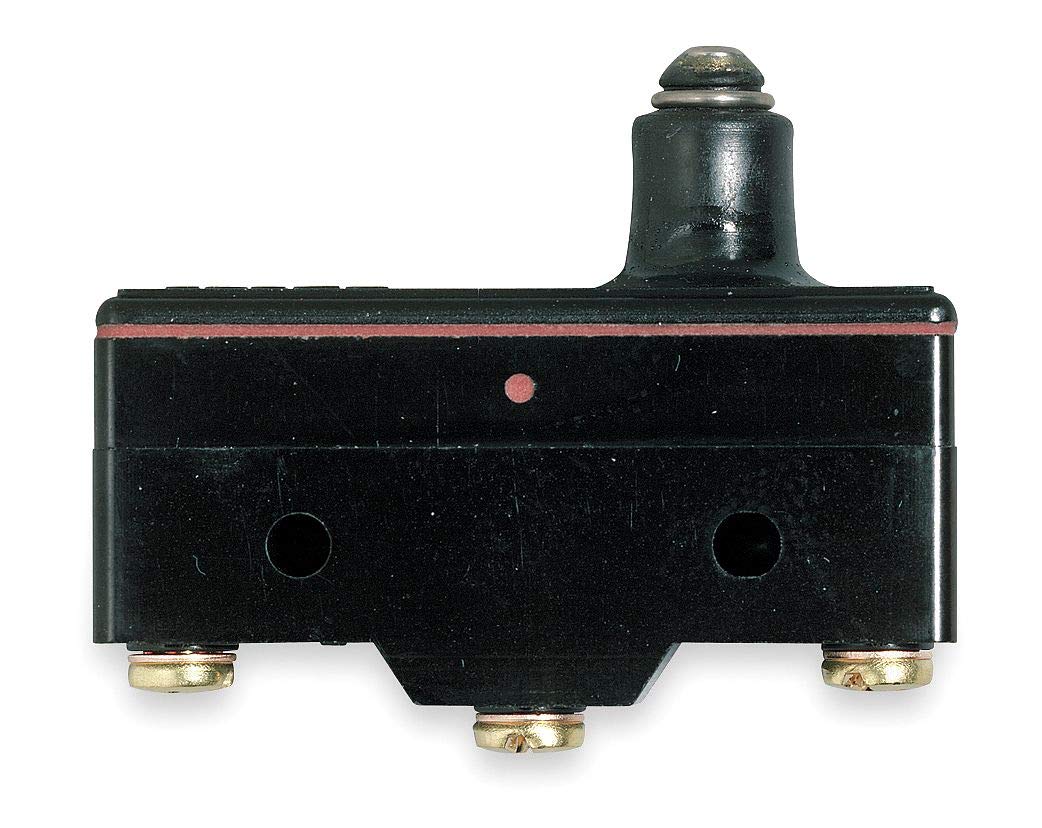

Omron Z-Series Standard Snap switch having 1 NO - 1 NC contacts performs switching operation by 540 gf force with the input voltage as well as current rating of 125 - 250 VAC and 15 A respectively. Brand Name|Omron#MFR Part Number|Z15GS55B7K#UNSPSC|39122243#Item|Snap Switch#Type|Drip-Proof, Standard#Voltage Rating|125 - 250 VAC#Amperage Rating|15 A#Operating Force|540 gf#Release Force|114 gf#Contact Configuration|1 NO - 1 NC#Actuator Type|Slim Spring Plunger#Contact Form|SPDT#Travel|1.9 mm Pre-Travel, 1.6 mm Over Travel, 0.06 mm Movement Differential#Terminal Type|Screw#Electrical Connection|Wire#Mounting Type|Side#Body Material|Silver Contact#Temperature Range|-15 to 80 deg C#Enclosure Type|IP62#Dimensions|49.2 mm Length X 17.45 mm Width#Standard/Approvals|UL Listed, CE Certified, CSA Certified#Application|Industry Including Lifts, Garages, Production Lines, Machine Tools, Automotive, Security, Domestic Goods and Vending Machines
Weight:
1.0
Weight:
1.0 LB
Dimensions:
[2.0, 1.0, 1.0]
